| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YB-100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD10.3~USD29.5/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Psi Pressure Gauge Manometer | Accuracy: | 1.6,1.0.2.5 |
|---|---|---|---|
| Pressure Range: | 0-100Mpa | Process Connection: | NPT,BSP,PT,R ,1/4,1/2,1/8 |
| Application: | Water Oil Air Pressure Measurement | Oem: | Yes |

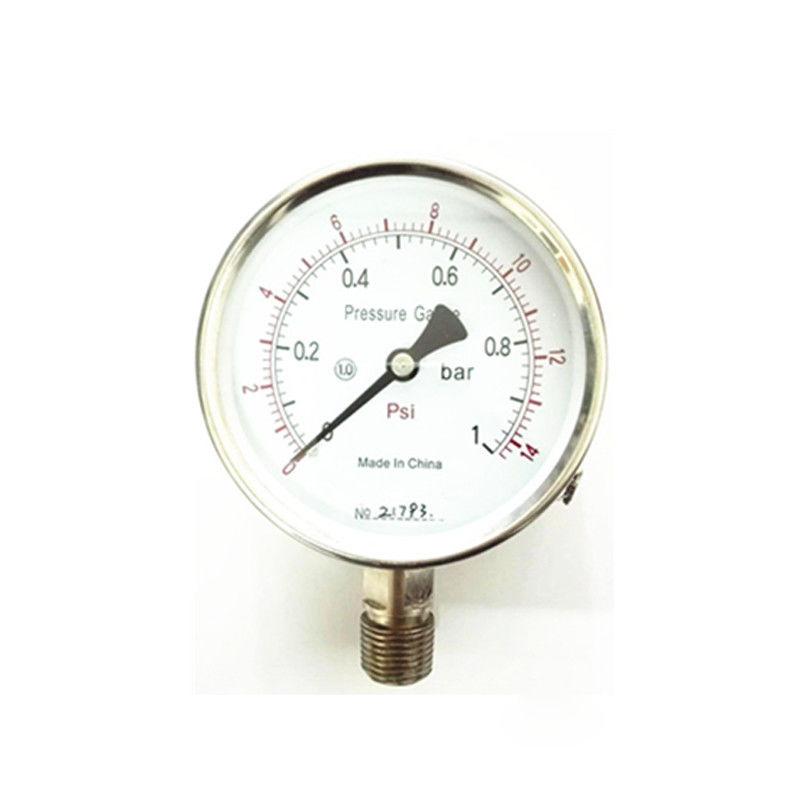

psi pressure gauge manometer
psi pressure gauge manometer Ordering guide
Pressure range:
DN:
Accuracy:
Thread:
Quantities:
psi pressure gauge manometer pressure gauge
Description:
YTFN-100 stainless steel pressure gauge with direct contact, fittings and pressure sensitive element of SUS316 material, has strong anti-corrosion properties of the measured medium, at the same time, housing, machines and other core components are all 1Crl8Ni9Ti, OCrl8Ni 12M02Ti material. Hermetically structure, the outer surface of the entire spray PTFE coating, has the best corrosion resistance to environmental capacity, so that the product is suitable for corrosive medium stainless steel element detection and harsh external corrosive environments.
psi pressure gauge manometer :
1.Accuracy class: 1.6, 2.5,1.0(custom)
2.Measuring range: (Mpa) (custom)
0-0.16 0-0.25 0-0.1 0-0.4
0-0.6 0-1.6 0-2.5 0-1
0-40-60-100-16
0-250-400-60
-0.1-0 -0.1-0.06 -0.1-0.15 -0.1-0.3
-0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4
3. Parts material: SUS316, SUS316L, 1Crl8Ni9Ti(custom)
4. The instrument nominal diameter: Φ60mm Φ100mm Φ150mm( custom)
5. Connector thread size: M20X1.5 (G3 / 8 ", Gl / 4", NPTl / 2 "or custom)
6.Working conditions:
(1) Ambient temperature: -40-70 ℃
(2) Working pressure: Static load: with a scale value 3/4 alternating load: The scale value short 2/3 pressure: the scale value
Application psi pressure gauge manometer:
Industrial, petroleum, chemical, heating systems, piping, instrumentation, pneumatic line and auxiliary equipment.
