| Place of Origin: | Made In China |
| Brand Name: | WISE |
| Certification: | CE |
| Model Number: | YX |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45~USD165/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Material: | Stainless Steel | Pressure Range: | -0.1- 0 - 60MPa, -0.1 - 2.4MPa, -1-0-600bar |
|---|---|---|---|
| Accuracy: | ±1.6%,±2.5% | Interface: | M20*1.5(we Can Supply The OEM Interface) |
| Medium: | Gas, Oil, Liquid Ect. | Dial Diameter: | 60mm, 100mm, 150mm Optional |
| Temperature: | -40℃ ~ +70℃ | Product Name: | Electrical Contact Diaphragm Pressure Gauge |
| Warranty: | 12 Months | Thread: | 1/2NPT (Custom) |
digital air pressure gauge/Electrical contact diaphragm pressure gauge
Description
In order to make the electric contact pressure gauge can be adapted to measure the media pressure of strong corrosion, high temperature, high viscosity, easy to crystallize, easy to coagulate, with solid floats and to avoid the direct access of the measuring medium to the universal pressure gauge and to prevent sediment accumulation and easy to clean Of the occasion, should be used to form a system of isolator electrical contact pressure gauge diaphragm pressure gauge. It is suitable for the measurement of gas, liquid with no explosion danger, strong corrosion, high temperature, high viscosity, easy to crystallize, easy to solidify and floating with solid. It is required to realize automatic control and signaling (alarm) to the pressure system under test. Membrane electrical contact pressure gauge set upper and lower limit two switch contact device when the pressure reaches the set value signal or on-off control circuit for the operating system to automatically control or send messages. Its diaphragm structure can effectively isolate the pressure medium with strong corrosion, high temperature, high viscosity, easy to crystallize, easy to solidify and floating with solid substance, so as to ensure that the electric contact meter can effectively measure the working pressure of the system or machinery. Diaphragm electrical contact pressure gauge electrical contact pressure gauge features widely used in mechanical, chemical, petroleum metallurgy, power, alkali, water treatment and other industrial processes or mechanical and electrical matching in the measurement of the risk of explosion of various fluid pressure medium. Normally, the meter can be used for automatic control and signaling (alarm) of the pressure system under test (control) by supporting the corresponding electrical devices (such as relays and contactors).

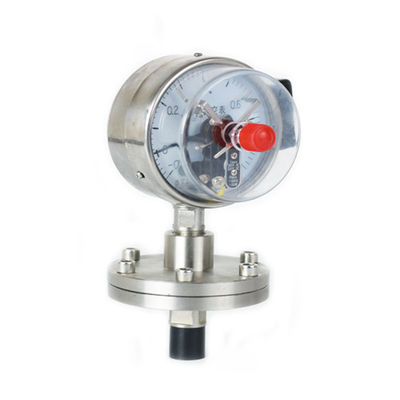

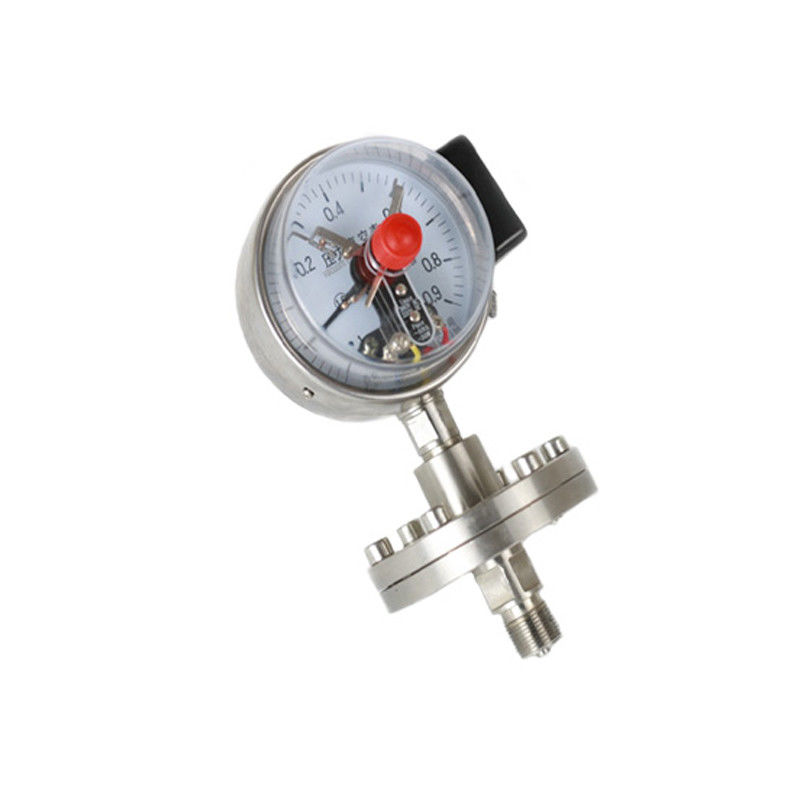

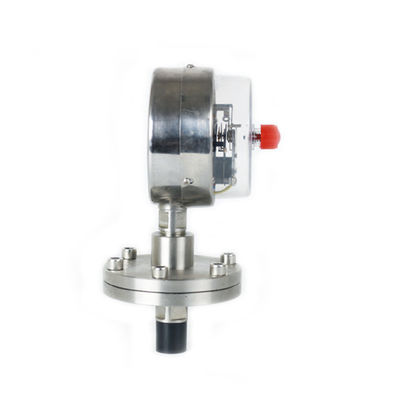

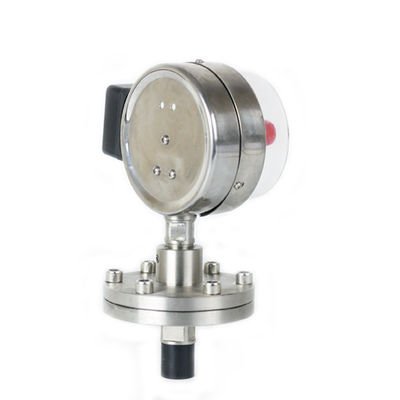

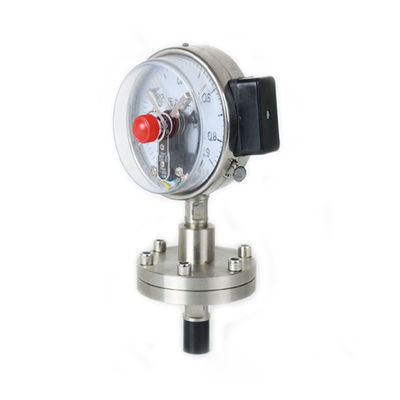

Details Images
Technical Data
| digital air pressure gauge/Electrical contact diaphragm pressure gauge | |
| Accuracy | ± 1.6%, ± 2.5% |
| Diaphragm Materials | OCr18Ni12Mo2 (316), Hastelloy C (H276c), Monel (Cu30Ni70), Tantalum (Ta), Fluoroplastic (PTFE) |
| Connection Method | Screw connection: M20 × 1.5; G1 / 2; 1 / 2NPT |
| Flange Connection | according to the Ministry of Chemical Industry HG, GB GB and Japan JIS, ANSI and other standards of the United States manufacturing |
| Isolator Material | stainless steel, fluorine plastic. |
| Gaskets Material | NBR, fluorine plastic. |
| Sealing Liquid | silicone oil, vegetable oil |
| Executive Standard | JB / T8624-1997 |
| Pressure Range | -0.1~ 0 ~ 60MPa, -0.1 ~ 2.4MPa, -1 ~ 0 ~ 600bar |
| Dial Diameter | 60mm, 100mm, 150mm Optional |
| Temperature | -40℃ ~ +70℃ |
| Product Keywords | Diaphragm Pressure Gauge |
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
