| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | Y047~055 Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $926.00~$1200.00/pc |
| Packaging Details: | Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0-0.6mpa | Accuracy: | ±0.05 |
|---|---|---|---|
| Working Temperature: | 15~30℃ | Temperature Coefficient ( /°C): | 1.7*10-5 |
| Rated Air Pressure (MPa): | 0.5,0.9 Or 0.6 | Dimension(mm): | 380*240*260 |

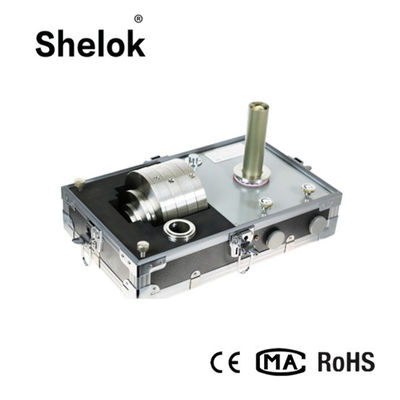

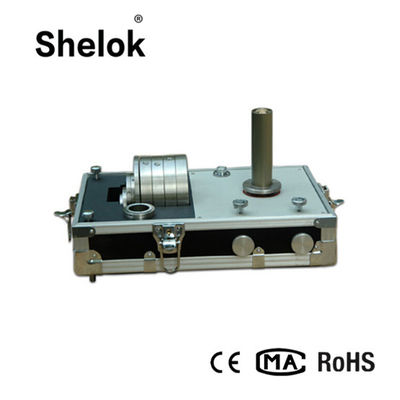

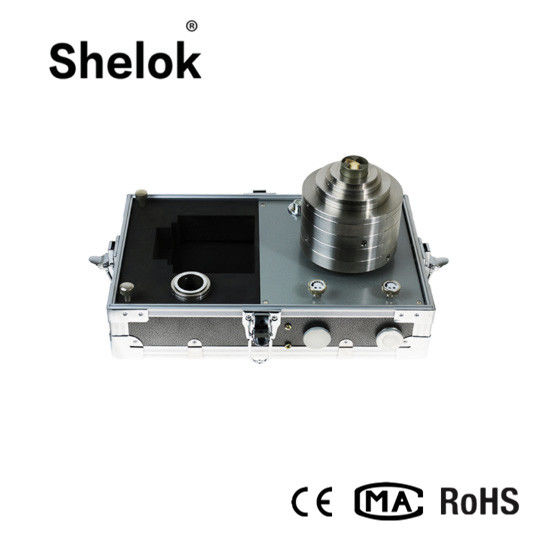

Float ball pressure resource/pressure calibrator
Description of Float ball pressure resource/pressure calibrator
Ball pneumatic dead weight tester is as a pressure resource of pressed air and nitrogen. It is pneumatic loaded pressure calibrator to use the floating ball.
It is a kind of pressure benchmark instrument, with nitrogen or instrument compressed air as agergy.
It is an ideal equipment that calibrate all kinds of high accuracy of pressure transmitter, differential transmitter and precision of pressure gauge
Technical Parameter of Float ball pressure resource/pressure calibrator
| Item | Y047 | Y055 | Y055A |
| Output pressure ranges(MPa) | 0.001~0.25 | 0.005~0.6 | 0.005~0.4 |
| Accuracy (%) | ±0.05 | ±0.05 | ±0.05 |
| Working temperature(°C) | 15~30 | 15~30 | 15~30 |
| Temperature Coefficient ( /°C) | 1.7×10-5 | 1.7×10-5 | 1.7×10-5 |
| Rated air pressure (MPa) | 0.5 | 0.9 | 0.6 |
| Max air pressure (MPa) | 0.7 | 1 | 1 |
| Lowest air pressure (MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
| Air consumption of Rated Air Pressure(l/h) | ≤150 | ≤300 | ≤300 |
| Dimension(mm) | 380×240×260 | 380×240×260 | 380×240×260 |
| Weight (kg) | ≈15 | ≈15 |
