| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | Y047, Y055, Y055A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $849.00~$926.00/pc |
| Packaging Details: | Ball Pneumatic Dead Weight Tester, Load Cell Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0-0.6mpa | Accuracy: | ±0.05 |
|---|---|---|---|
| Working Temperature(°C): | 15~30 | Temperature Coefficient ( /°C): | 1.7*10-5 |
| Rated Air Pressure (MPa): | 0.5,0.9 Or 0.6 | Dimension(mm): | 380*240*260 |
Ball Pneumatic Dead Weight Tester, Load Cell
Description Ball Pneumatic Dead Weight Tester, Load Cell
Pneumatic Dead Weight Tester with compressed air or nitrogen gas as the pressure source, is a Aerodynamic load pressure meter that with precision float ball in pressure area of lower sphere working state for the effective area of the floating ball.The floating ball tester as a pressure resource of pressed air and Nitrogen. It is pneumatic loaded pressure calibrator to use the floating ball.
The tester is a kind of pressure Benchmark instrument, with nitrogen or instrument compressed air as energy. it's an ideal equipment that calibrate all kinds of high accuracy of pressure transmitter, differential transmitter and precision of pressure gauge.

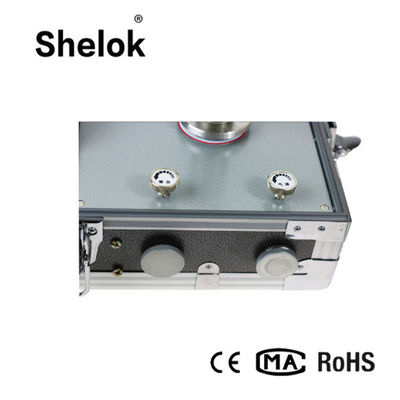

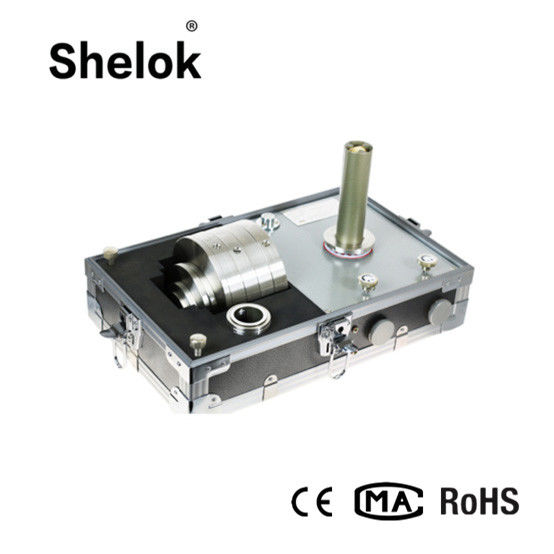

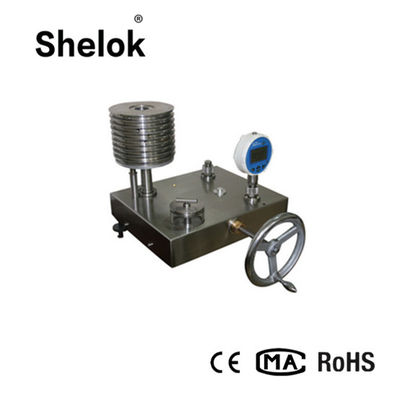

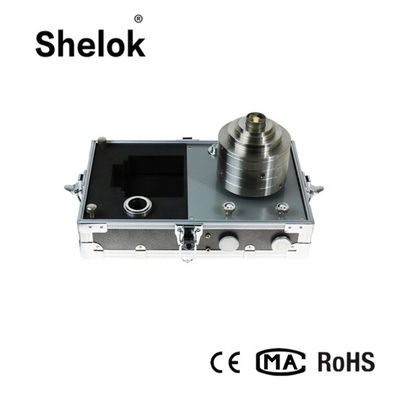

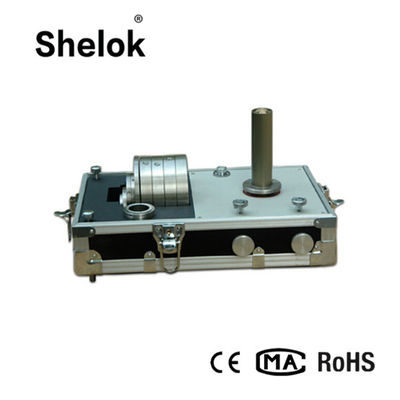

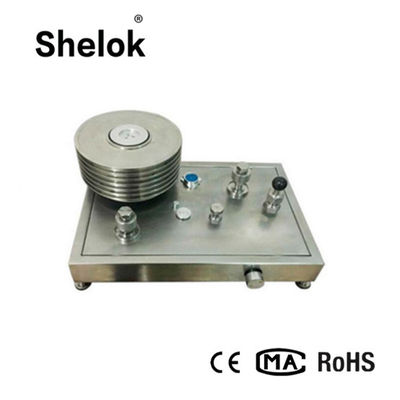

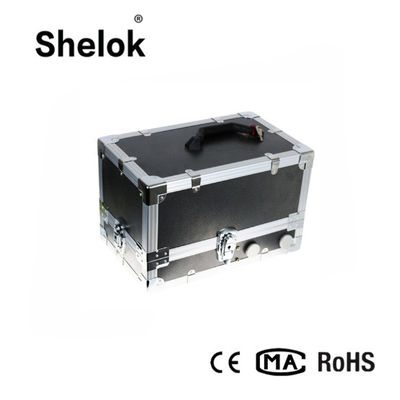

Detailed Images Ball Pneumatic Dead Weight Tester, Load Cell
Specification Ball Pneumatic Dead Weight Tester, Load Cell
| Model No. SLK-Y047 Dead Weight Tester Parameter | |
| Output Pressure | 0.001~0.25 Mpa |
| Accuracy | ±0.05% |
| Working Temperature | 15℃~30℃ |
| Rated Pressure Supply | 0.5 Mpa |
| Max Pressure Supply | 0.7 Mpa |
| Min Pressure Supply | 1.5 Times of Output Pressure(3Mpa When Lower Than 3Bar) |
| Air Consumption at Rated Pressure Supply | ≤150 l/h |
| Dimension | 380×240×260mm |
| Weight | ≈15KGS |
| Model No. SLK-Y047 Dead Weight Tester Standard Weights | ||
| Weight Name | Weight Mark (Mpa) | QTY(Pcs) |
| Standard Weight | 0.05 | 4 |
| 0.02 | 1 | |
| 0.01 | 2 | |
| 0.005 | 1 | |
| 0.002 | 1 | |
| 0.001 | 2 | |
| Short-Weight Fram | 0.005 | 1 |
| Long-Weight Frame | 0.005 | 1 |
| Model No. SLK-Y055 & SLK-Y055A Dead Weight Tester Parameter | ||
| SLK-Y055SLK-Y055A | ||
| Ouptput Pressure | 0.005~0.6 Mpa0.005~0.4 Mpa | |
| Accuracy | ±0.05 % | |
| Working Temperature | 15℃~30℃ | |
| Temperature Coefficient | 1.7×10-5℃ | |
| Reated Pressure Supply | 0.9 Mpa | 0.6 Mpa |
| Max Pressure Supply | 1 Mpa | |
| Min Pressure Supply | 1.5 Times of Output Pressure (3Mpa When Lower Than 3Bar | |
| Air Consumption at Rate Pressure Supply | ≤300 l/h | |
| Dimension | 380×240×260mm | |
| Weight | ≈15KGS | ≈12KGS |
| Model No. SLK-Y055 & SLK-Y055A Dead Weight Tester Standard Weights | |||
| Weight Name | Weight Mark (Mpa) | QTY(Pcs) | |
| SLK-Y055 | SLK-Y055A | ||
| Standard Weight | 0.05 | 11 | 7 |
| 0.02 | 1 | 1 | |
| 0.01 | 2 | 2 | |
| 0.005 | 1 | 1 | |
| Long-Weight Frame | 0.005 | 1 | 1 |
Working Principle
Precision float ball in a cylindrical nozzle, special weight effects at the top of the ball and the pressure in the nozzle effects at the bottom of the ball, so that the ball floating in the nozzle. When the special weights gravity is balanced to the pressure force, the floating ball pressure meter can output a stable and precise pressure value.
