| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YS Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $865~$945/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Piston Type Pressure Gauge Dead Weight Tester YS-600 | Usage: | Pressure Testing Instrument |
|---|---|---|---|
| Measuring Range: | 5~600bar | Power: | Electronic |
| Accuracy: | 0.02%,0.015% | Resolution: | 0.1bar |
| Sectional Area: | 0.05, 0.1cm2 | Warranty: | 12 Months |
| Load Quantities: | 2~11 | Pipe Pressure: | 135.1bar |

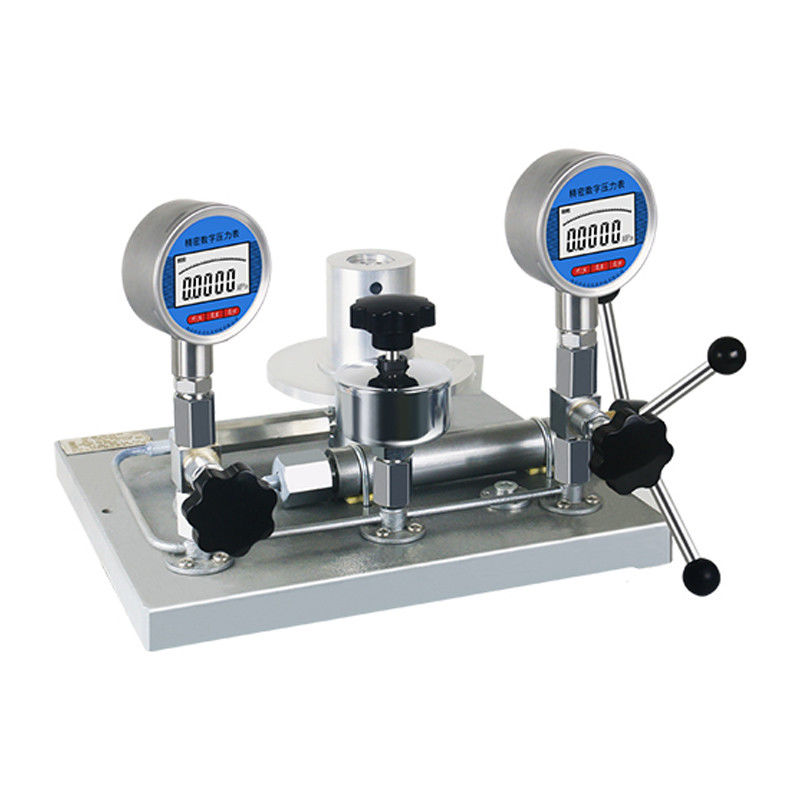

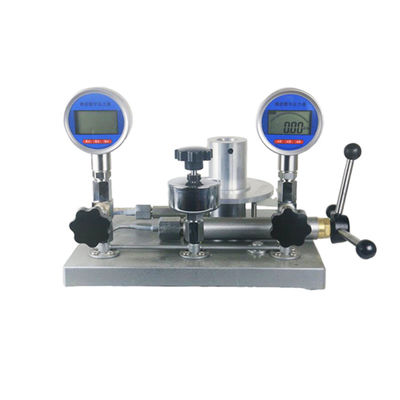

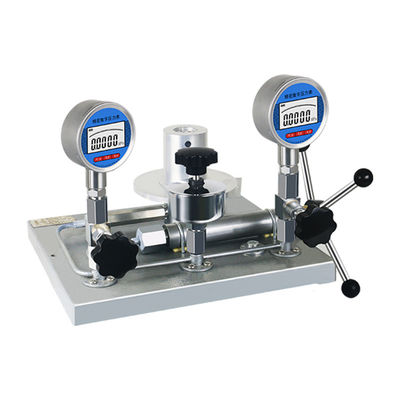

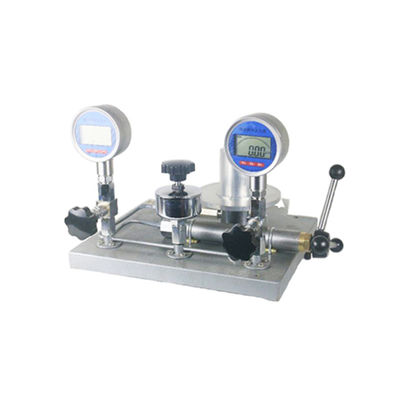

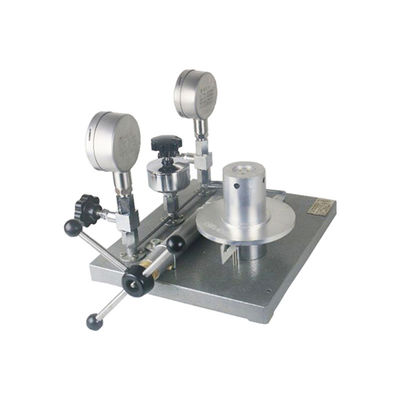

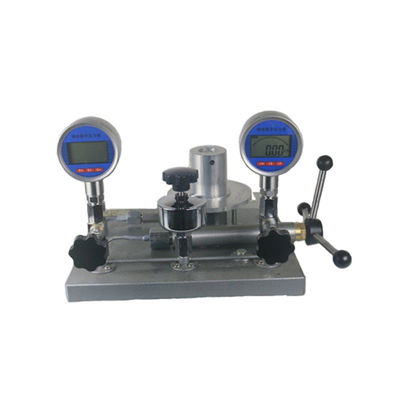

Piston Type Pressure Gauge Dead Weight Tester YS-600
Product Description
Detailed Images
Product Description
Specification
| Model | YS-6 | YS-60 | YS-250 | YS-600 | |||||
| Measure Range | bar | 0.4-6 | 1-60 | 5-250 | 10-600 | ||||
| Accuracy | % | 0.02 or 0.05 | |||||||
| Nominal Area of Piston | cm2 | 1 | 0.5 | 0.2 | 0.1 | ||||
| Carrier and Piston | Nominal Mass | kg | 0.4 | 0.5 | 1 | 1 | |||
| Produced Pressure | bar | 0.4 | 1 | 5 | 10 | ||||
| Supplied Weights | Nominal Mass | kg | 0.10.5 | 0.52.5 | 15 | 15 | |||
| Produced Pressure | bar | 0.10.5 | 15 | 525 | 1050 | ||||
| Quantity Block | pcs | 610 | 411 | 49 | 411 | ||||
| Pressure Connection | M 20×1.5 | ||||||||
| Working Medium | Transformer Oil (viscosity 9~12 centistokes at 20i), or Medical Castor Oil (aciditymg KOH/g) |
||||||||
| Dimensions | mm | 630×382×593 | |||||||
| Weight | kg | 20+5.6 | 26+29.5 | 26+49 | 26+59 |
||||
