| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YS Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $865~$945/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Factory Directly Piston Calibrate Pressure Gauge Dead Weight Tester | Usage: | Pressure Testing Instrument |
|---|---|---|---|
| Measuring Range: | 5~600bar | Power: | Electronic |
| Accuracy: | 0.02%,0.015% | Resolution: | 0.1bar |
| Sectional Area: | 0.05, 0.1cm2 | Warranty: | 12 Months |

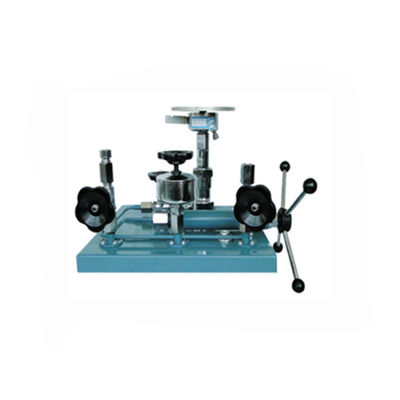

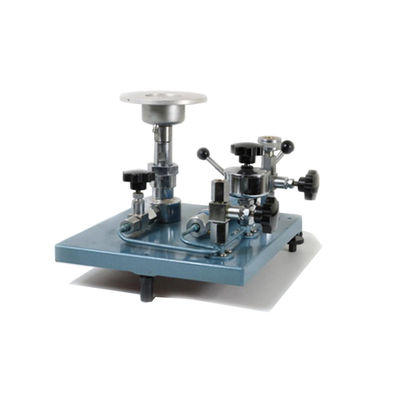

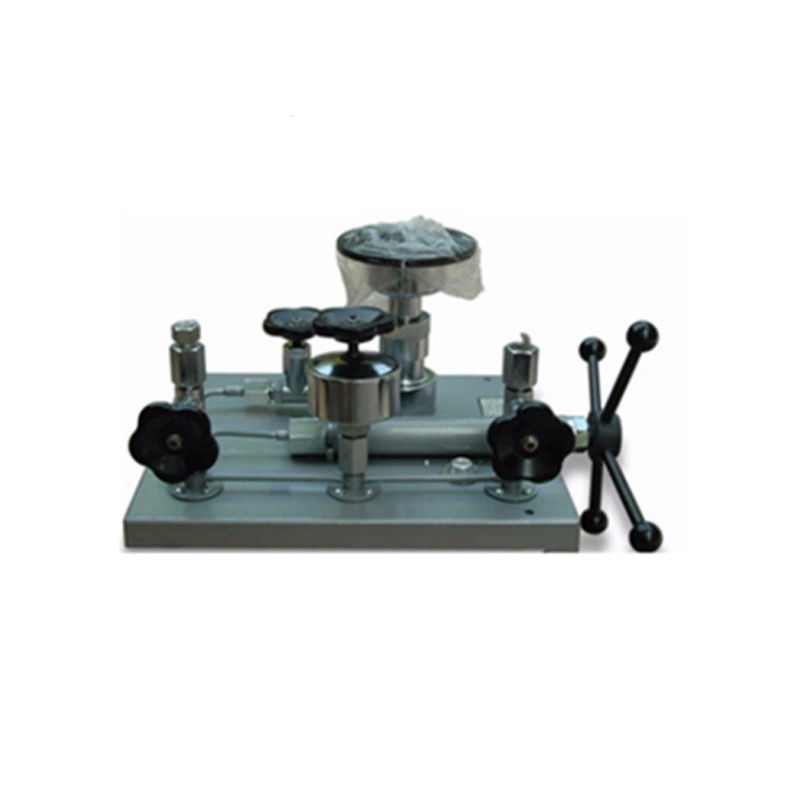

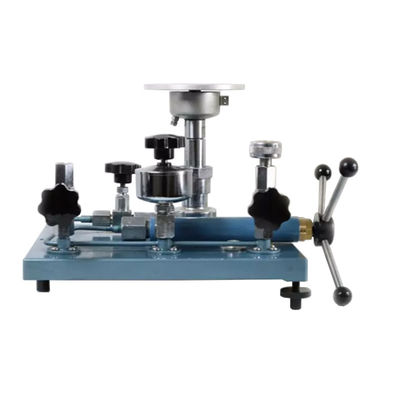

Factory Directly Piston Calibrate Pressure Gauge Dead Weight Tester
Product Description
Hydraulic pressure calibrator Dead weight tester is a Standard calibration. Dead weight testers are so called primary standards which means that the pressure measured by a dead weight tester is defined through other quantities; Length, mass and time. Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.
Detailed Images
Specification
| Parameter | Unite | Pressure Range | ||||
| 0.6Mpa | 6Mpa | 25Mpa | 60Mpa | |||
| Upper limit | Mpa | 0.6 | 6 | 25 | 60 | |
| Lower limit | Mpa | 0.04 | 0.1 | 0.5 | 1 | |
| Nominal piston area | cm2 | 1 | 0.5 | 0.2 | 0.1 | |
| Base and Piston | Nominal mass | Kg | 0.4 | 0.5 | 1 | 1 |
| Generated pressure | MPa | 0.04 | 0.1 | 0.5 | 1 | |
| Special Weights | Nominal mass | Kg | 0.1;0.5 | 0.5;2.5 | 1;5 | 1;5 |
| Generated pressure | MPa | 0.01;0.05 | 0.1;0.5 | 0.5;2.5 | 1;5 | |
| Qty | pcs | 6 ;10 | 4;11 | 4;9 | 4;11 | |
| Thread Size | M20×1.5 | M20×1.5 | M20×1.5 | M20×1.5 | ||
| Weight | Kg | 35 | 60 | 47 | 84 | |
| Medium | 25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20℃,acid value is not more than 0.05mg KOH/g | Sebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20℃,acid value is less than 0.05mg KOH/g | ||||
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
NanCon considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Zhejiang NanCon Industrial Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
