| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | DK Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $17000~$2100/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | DK Dead Weight Tester With Hydraulic | Accuracy: | 0.05% |
|---|---|---|---|
| Power: | Hydraulic | Measure Range: | 0.04 ~ 0.6MPa |
| Material: | Tungsten Carbide Material | Package Size: | 250x150x150mm |
| Warranty: | 1 Year |

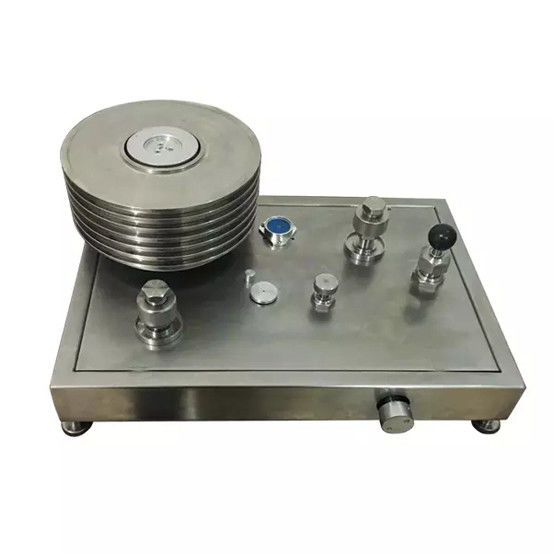

DK Dead Weight Tester With Hydraulic
Product Description
DK times, we use it on some other gauges to calibrate the daseries DWT is a high precision and reliable standard pressure calibrator which is basic on Pascal law and a statics balance principle. It is usually called piston gauge or manometer, sometimes pressure balance instrument, major used in the lab and measure workshop, or as a pressure calibrator.

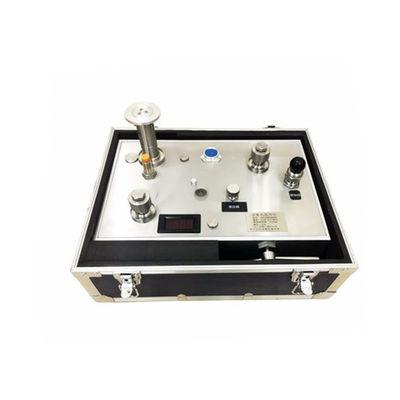

Detailed Images
Specification
Features
1. Piston and piston cylinder are using high strength, high hardness, and low temperature expansion coefficient of tungsten carbide material after, the working environment temperature is wide, stable performance of 20±5℃.
2. The load center of gravity is low, the weight is directly added to the piston through the hanging basket, the piston runs smoothly, the pressure fluctuation is very small, and the value is accurate.
3. Above 25MPa, pressure transmitting medium use diisooctyl sebacate with small viscosity, to ensure a high sensitivity..
4. The weights of the tester is made of stainless steel.
5. Piston position with displacement sensor monitoring, the piston up and down stroke is ±1.5mm, the instrument display has the advantages of sensitive, eye-catching, accurate and so on.
6. Range wide, at the lower limit of 1MPa, the basic error is ±0.02% or ±0.05%, a KY100 type tester, can replace 3 testers of 6,60,100MPa.
7. It is labor saving, and can be easily to add pressure to be 100MPa.
