| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | ACH-100Q |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD195~USD595/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Product Name: | Automatic Pressure Instrument Calibration System | Model No.: | ACH-60Q |
|---|---|---|---|
| Pressure Range: | (0.1~10)MPa | Pressure Stablity: | 0.05%F.S |
| Accuracy: | 0.005/0.01 0.02/0.05 | Connection: | M20x1.5 |
| Medium: | Pure Nitrogen Or Dry Air | Dimension: | ( 680×480×310 )mm |
| Weight: | 30KGS | Warranty: | 18Months |

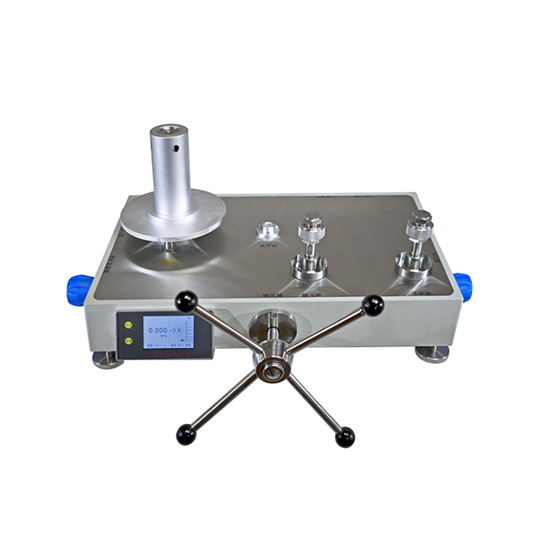

Gas Piston Dead Weight Tester Pressure Gauge
Product Description
The definition of pressure is the ratio of the force on a certain area to the area. The core component is a very accurate piston system component, which is loaded with weights to generate the pressure required for the measurement. The instrument measures pressure directly by definition (P=F/S).
Detailed Images
Specification
| Gas Piston Dead Weight Tester Pressure Gauge | |||||
| Model No. | ACH-100Q | Measuring Range | (0.1~10)MPa | Piston core material | |
| Accuracy | 0.005/0.01 0.02/0.05 |
Dimension | 680*480*310mm | piston rod | Piston cylinder |
| Total Weight | 30KGS | Table body material | Aluminum alloy sheet | Tungsten Carbide | Tungsten Carbide |
| Working Medium | Pure nitrogen or dry air | ||||
Weight Specification
| Weight Parameter | ||||
| Spec. (MPa) | Qty (block) | Dimensions Diameter Φ(mm) | Mass (Kg/block) | Material |
| 0.5 | 19 | 280 | 5 | Stainless Steel |
| 0.1 | 4 | 160 | 1 | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
| -- | -- | -- | -- | Stainless Steel |
Features
1.ACH series gas piston pressure gauges use dry pure air or pure nitrogen as the gas source, and the equipment to be inspected is not polluted. It is mainly aimed at clean laboratories, medical industry products and products with high pollution protection levels, etc., with high safety requirements The design of the testing site is simpler and safer.
2. Patented piston pressure system components, novel structure, tool-free disassembly and assembly, easy to clean the piston system and replace the sealing ring, convenient, fast and safe.
3. The product upgrade increases the intake flow control valve, which controls the intake flow more carefully and accurately, and avoids the inevitable damage to the piston system and the instrument under inspection caused by excessive intake air.
4. The positive and negative gas (-0.1-0.6) MPa display part is upgraded, and the touch-integrated 3.5-inch color LCD display system is used to increase the display of temperature, humidity, pressure (convertible MPa, kPa, psi, bar) and other functions. Real-time display of pressure values.
5. The performance of the fine-tuning system is better than that of the oil pressure regulating system, the pressure regulating process is easy, no pressure relief, and maintenance-free.
6. The positive pressure gas (0.1-6) MPa is also equipped with a high-precision pressure sensor (convertible MPa, kPa, psi, bar) on the basis of the original (displacement; temperature and humidity), which can display the pressure value in real time.
8. Equipped with two quick interfaces (M20×1.5) of the meter seat, with a stop valve (optional by the customer), which can be used for sealing test.
9. The table seat globe valve (optional by the customer) and the pressure regulator are maintenance-free and easy to operate. Reasonable handle design, personalized design according to hand grip.
10. The main body is made of 12mm thick aluminum alloy plate and stainless steel panel, which is firm and stable.
Use Enviroment
Ambient temperature: (20±1)℃
Relative humidity: constant temperature room below 85%
Power supply voltage: AC 220V
Frequency: 50HZ
There should be no mechanical vibration affecting the metering performance during use
Application
❶ Industrial and mining enterprises
❷ Scientific research institutions
❸ Colleges and universities
❹ Military industry
❺ Measurement and other departments
❻ Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
❼ Temperature transmitters (sensors), temperature switches and temperature instruments.
