| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CHBP1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $15~$35.00/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Parallel Planar Beam Cantilever 50kg 100kg 150kg 250kg 300kg Load Cell | Output: | Analog SENSOR |
|---|---|---|---|
| Material: | Alloy Steel,stainless Steel | Range: | 50-500kg |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 2.0±0.005mv/v |
| Operating Temperature: | -20~80℃ | Safe Overload: | 150%F.S |
| Creep: | ±0.03%F.S | Zero Output: | ±1%F.S |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |

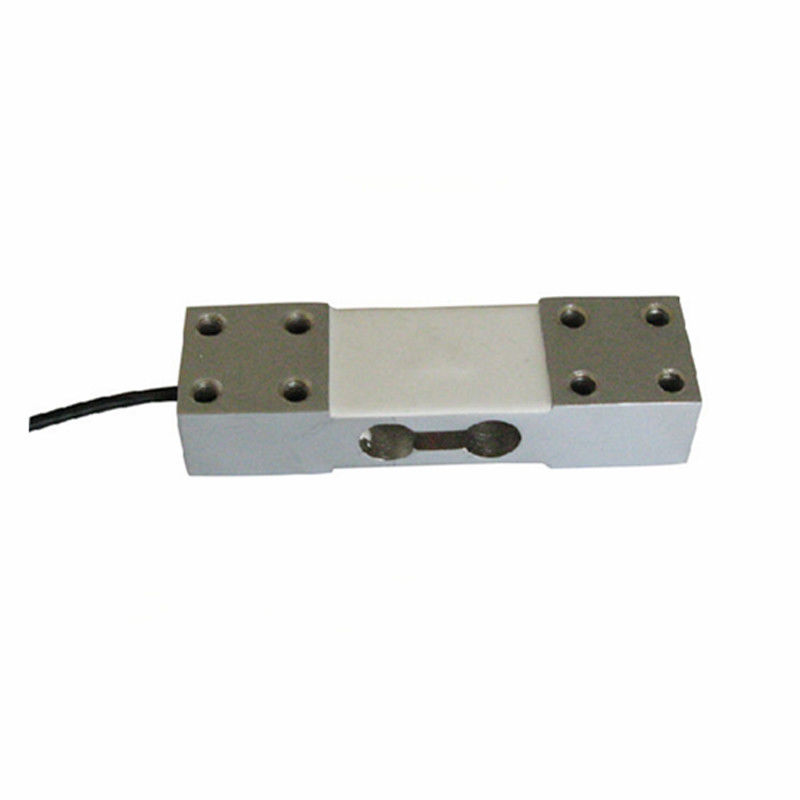

Parallel planar beam cantilever 50kg 100kg 150kg 250kg 300kg load cell
Description
Adopt advanced alloy steel elastic element design, high measuring precision, good temperature characteristic of the whole structure, four Angle error correction, avoid the error caused by the different position of the bearing point, etc.
Detailed Images
Specification
| Measuring range | 0-50KG,0-100KG,0-150KG,0-200KG,0-250KG,0-300KG | ||
| Sensitivity | 1.5-2.0mV/V | Operating temperature | -20~80℃ |
| Total accuracy | 0.02,0.03,0.05%F.S | Input resistance | 385±20Ω |
| Zero output | ±1%F.S | Output resistance | 350±5Ω |
| Excitation voltage | 10 or 12VDC | Safe overload | 150%F.S |
| Zero temperature coefficient | ±0.05%F.S/10℃ | Sensitivity temperature coefficient | ±0.05%F.S/10℃ |
Drawings
CHBP1
Applications
Widely used in electronic scale, table scale, cement computer scale weighing measurement.
