| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | CLBU |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $10~$70/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Product Name: | Spoke Button 50 Ton 60 Ton Load Cell 100 Ton |
| Material: | Alloy Steel,stainless Steel | Range: | 50-500kg |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 2.0±0.005mv/v |
| Operating Temperature: | -20~80℃ | Safe Overload: | 150%F.S |
| Creep: | ±0.03%F.S | Zero Output: | ±1%F.S |

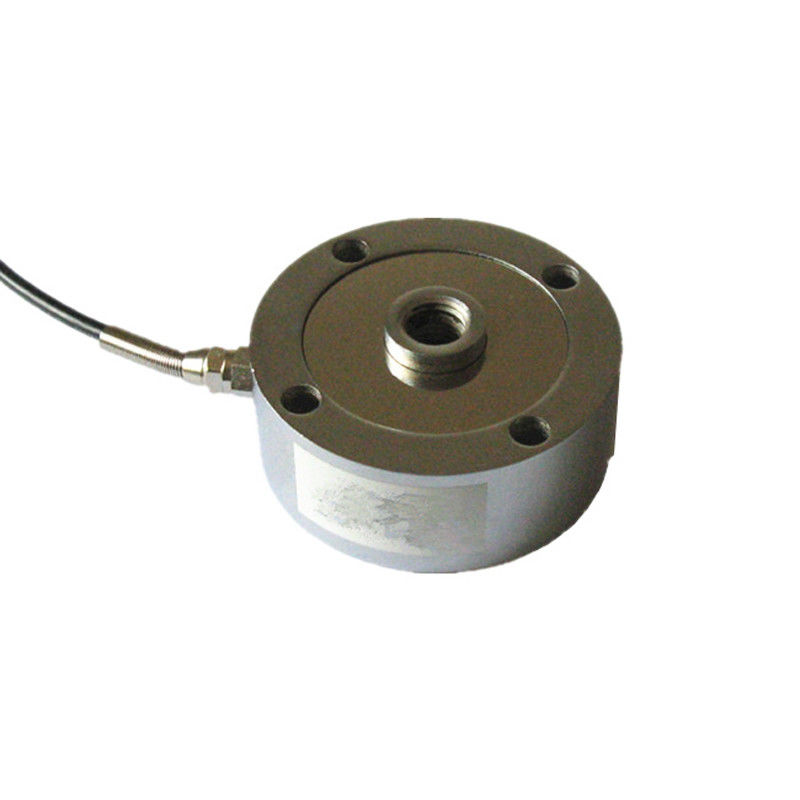

Spoke button 50 ton 60 ton load cell 100 ton
Description
The load cell is made of hub-and-spoke elastomer structure and shearing stress principle.Suitable for testing various load forces.

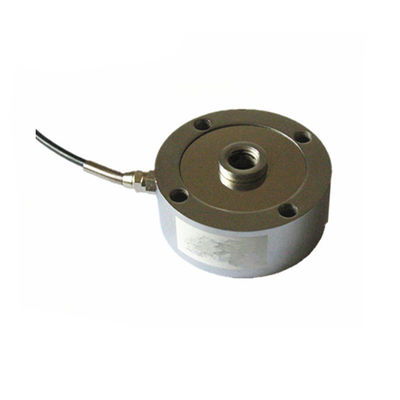

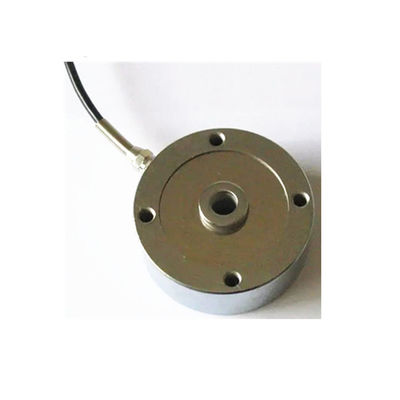

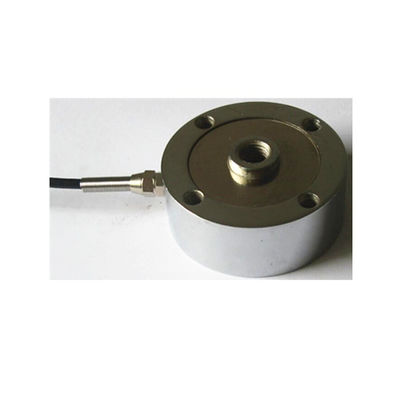

Detailed Images
Specification
| Sensitivity | 2.0±0.05mV/V | Operating temperature | -20~80℃ |
| Nonlinearity | ±0.05%F.S | Input resistance | 750±20Ω |
| Hysteresis | ±0.05%F.S | Output resistance | 700±5Ω |
| Repeatability | ±0.05%F.S | Safe overload | 150%F.S |
| Creep | ±0.05%F.S/30min | Zero output | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10-15V |
| Zero temperature coefficient | ±0.05%F.S/10℃ | Sensitivity temperature coefficient | ±0.05%F.S/10℃ |
Drawings
CLBU
Applications
Widely used in a variety of electronic scales, cement silo, powder mixer and industrial automation measurement and control system.
