| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CHBQ2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $10~$35/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Product Name: | Chinese Cheap Half Bridge Weighbridge 5t 10t 15t 20t Load Cell |
| Material: | Alloy Steel,stainless Steel | Range: | 5t,10t,15t,20t |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 1.5±0.1mv/v |
| Operating Temperature: | -30~+250℃ | Safe Overload: | 150%F.S |
| Creep: | ±0.05~±0.1%F.S/30min | Zero Output: | 2%F.S |

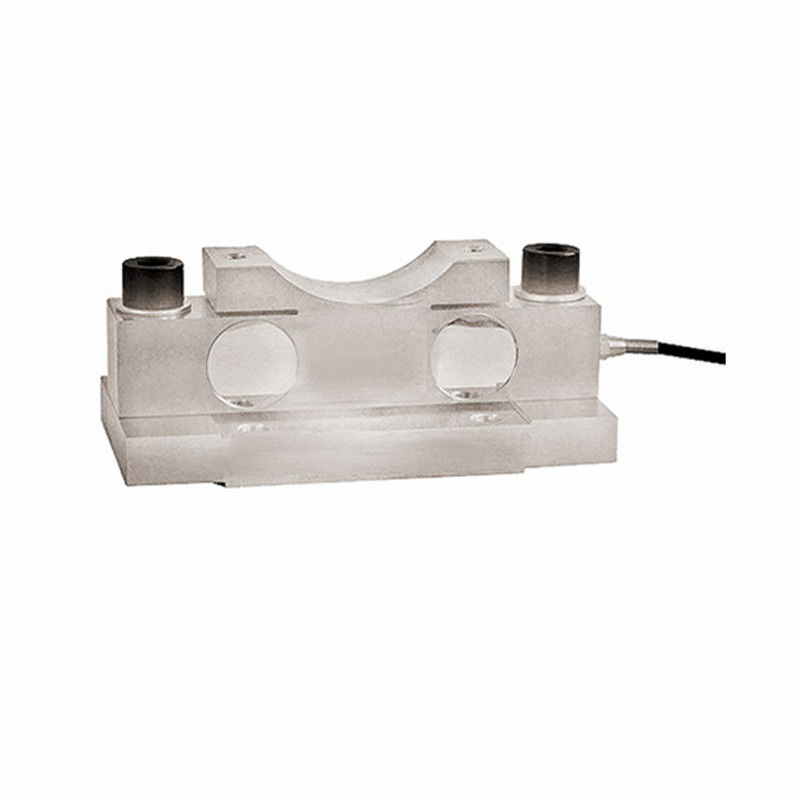

Chinese cheap half bridge weighbridge 5t 10t 15t 20t load cell
Description
The load cell adopts the fishback bearing mode with central connection, with automatic reset function, easy installation and other characteristics.
Detailed Images
Specification
| Range | 10,15,20 |
| Sensitivity | 1.5±0.1mv/v |
| Repeatability | 0.03~0.05%F.S |
| Hysteresis | ±0.05%F.S |
| Nonlinearity | ±0.05~±0.1%F.S |
| Creep | ±0.05~±0.1%F.S/30min |
| Zero output | 2%F.S |
| Zero point temperature influence | ±0.05~±0.1%F.S/10℃ |
| Temperature | -30~250℃ |
| Insulated resistance | ≥5000MΩ(50VDC) |
| Reference voltage | 9~12V |
| Safe overload | 150%F.S |
Drawings
CHBQ2
Applications
Widely used in various suspension, axle load measurement and weighing system.
