| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CHBQ1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $15~$95/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Product Name: | Weigh Bridge Double Ended Shear Beam Load Cell 20t 30t 40t |
| Material: | Alloy Steel,stainless Steel | Range: | 50-500kg |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 2.0±0.005mv/v |
| Operating Temperature: | -20~80℃ | Safe Overload: | 150%F.S |
| Creep: | ±0.03%F.S | Zero Output: | ±1%F.S |

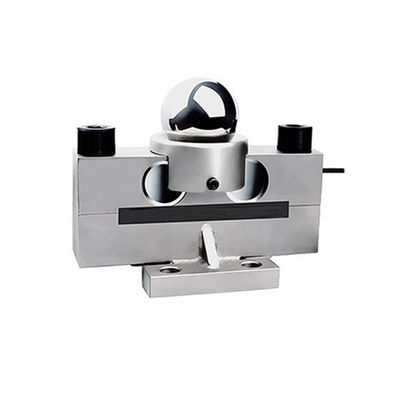

Weigh bridge type double ended shear beam load cell 10t 15t 20t 25t 30t 40t
Description
The load cell adopts double shear beam structure, and the combined pressure head can adjust the center automatically.

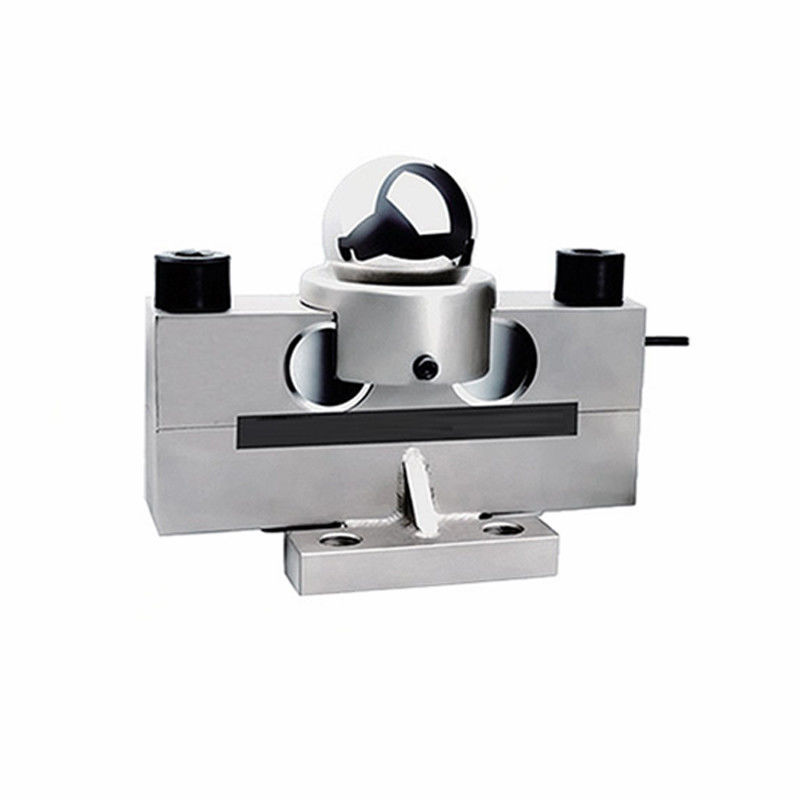

Detailed Images
Features
It has the characteristics of anti-bias load and high precision.
Specification
| Range | t | 10,15,20,25,30,40 |
| Sensitivity | MV/V | 2±0.002 |
| Repeatability | %R.C. | ≤0.01 |
| Hysteresis | %R.C. | ≤0.02 |
| Nonlinearity | %R.C. | ≤0.02 |
| Comprehensive precision | %R.C. | ≤0.02 |
| Zero output | %R.C. | ≤1 |
| Operating temperature | ℃ | -20~+70 |
| Input resistance | Ω | 380±300 |
| Output resistance | Ω | 352±3 |
| Reference excitation voltage | V(DC/AC) | 9~12 |
| Max excitation voltage | V(DC/AC) | 15 |
| Safe overload | %R.C. | 150 |
| Max overload | %R.C. | 150 |
| Ingress protection | IP68 | |
| Cable length | m | 5m |
Drawings
CHBQ1
Applications
Suitable for truck scale, railway scale and other electronic weighing device.
