| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CBS-3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $5~$35/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Product Name: | 50kg 250kg Waterproof Weight Sensor/load Cell S 500kg |
| Material: | Alloy Steel,stainless Steel | Range: | 50-500kg |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 2.0±0.005mv/v |
| Operating Temperature: | -20~80℃ | Safe Overload: | 150%F.S |
| Creep: | ±0.03%F.S | Zero Output: | ±1%F.S |

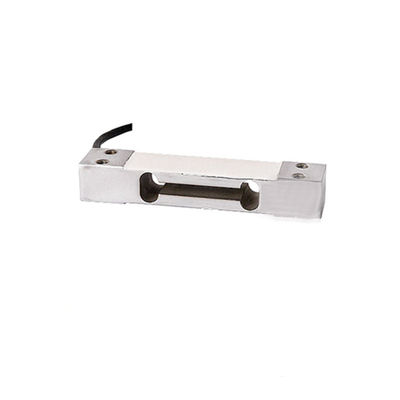

Shear beam parallel planar beam 50kg 250kg waterproof weight sensor/load cell s 500kg
Description
The load sensor elastomer adopts a shearing or bending cantilever beam structure, one end is fixed, one end is stressed, the height is low, and the structural strength is high, and can be used for carrying and measuring various tensile or compressive forces.

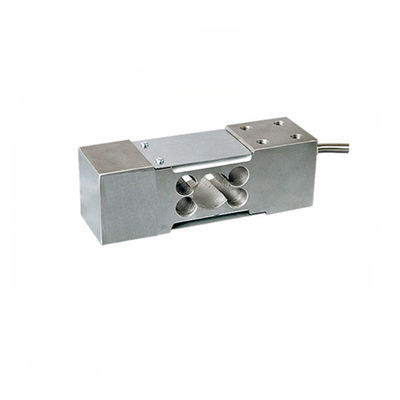

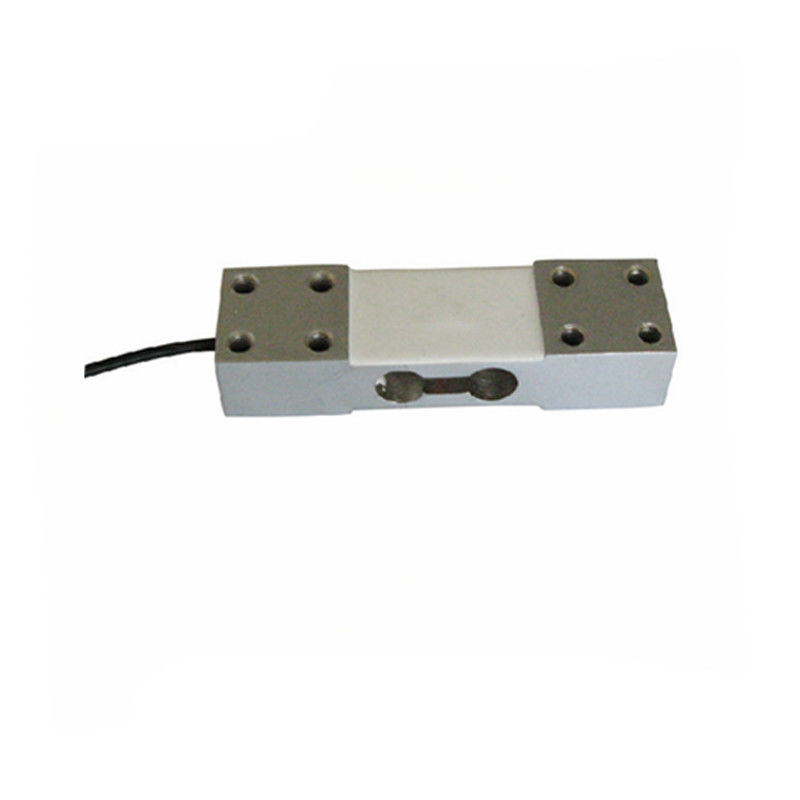

Detailed Images
Features
It has the characteristics of dustproof seal, wide measuring range, high precision, stable and reliable performance, convenient installation and use.
Specification
| Sensitivity | 2.0±0.05mV/V | Operating temperature | -20~80℃ |
| Nonlinearity | ±0.03%F.S | Input resistance | 350±20Ω |
| Hysteresis | ±0.03%F.S | Output resistance | 350±5Ω |
| Repeatability | ±0.02%F.S | Safe overload | 150%F.S |
| Creep | ±0.03%F.S/30min | Zero output | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10-15V |
| Zero temperature coefficient | ±0.03%F.S/10℃ | Sensitivity temperature coefficient | ±0.03%F.S/10℃ |
Drawings
CBS-3
Applications
It is applicable to industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.
