| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CLBSF1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $10~$70/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Product Name: | Alloy Steel Weighing Scale 500n 1000n S-type Load Cell |
| Material: | Alloy Steel,stainless Steel | Range: | 0.05~1500N |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 2.0mv/v |
| Operating Temperature: | -20℃~+65℃ | Safe Overload: | 150%FS |
| Creep: | ±0.02%FS/30min | Zero Temperature Influence: | ±0.03 %FS/10℃ |

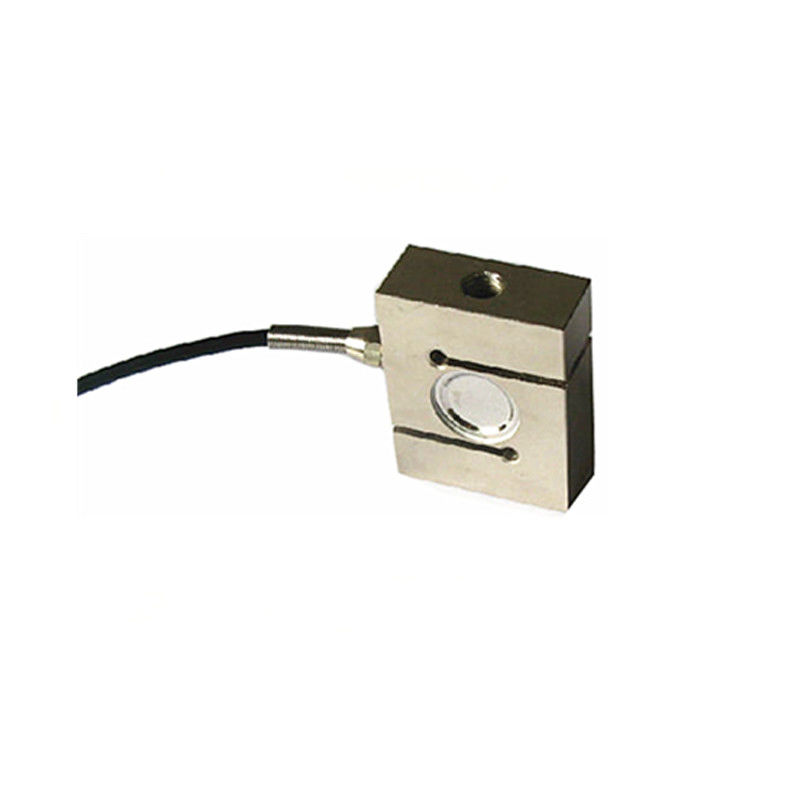

Alloy steel weighing scale 500n 1000n s-type load cell
Description
The load cell adopts S-beam structure, and both tension and pressure can be used. Can be used for automated control equipment, weighing detection equipment.
Detailed Images
Features
High measurement accuracy, good stability and good output symmetry.
Specification
| Rated Load | 0.05-1500N | ||
| Sensitivity | 2.0mv/v | Safety overload | 150%F.S |
| Overall accuracy | 0.02 | Limit overload | 300%F.S |
| Creep | ±0.02%F.S/30min | Working temperature | -20~65℃ |
| Zero output | ±1%F.S | Supply voltage | 10VDC |
| Zero temperature influence | ≤0.03%FS/10℃ | Output temperature drift | ≤0.03%FS/10℃ |
| Input resistance | 380±30Ω | Output Resistance | 350±3Ω |
| Material | Alloy steel/stainless steel | Insulation Resistance | ≥5000MΩ |
Applications
Widely used in belt scales, hopper scales, electromechanical combination scales, universal material testing machines, hook scales and various engineering devices.
