| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CHBP2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $15~$65/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Product Name: | High Precision Chinese Bending Beam Load Cell |
| Material: | Alloy Steel,stainless Steel | Range: | 100kg 150kg 200kg |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 1.5/2.0±0.002mv/v |
| Operating Temperature: | -20~80℃ | Safe Overload: | 150%F.S |
| Creep: | ±0.05%F.S | Zero Balance: | ±1%F.S |

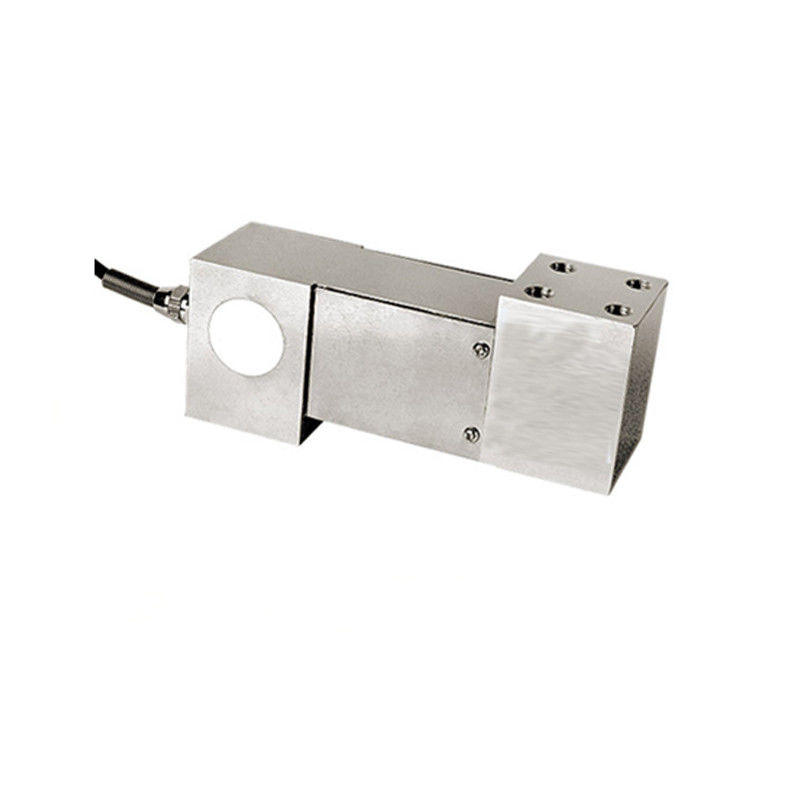

High precision chinese bending beam load cell 100kg 150kg 200kg
Description
The load sensor elastomer adopts a curved cantilever beam structure, one end is fixed, one end is stressed, and the structural strength is good, and can be used for carrying and measuring various tensile and compressive forces.

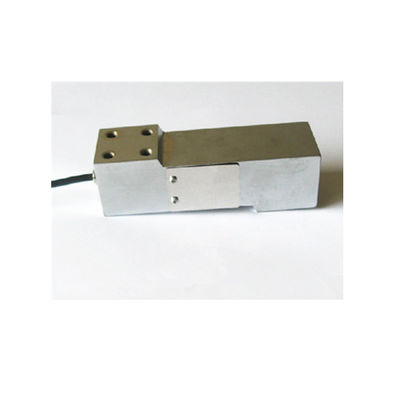

Detailed Images
Features
High precision
Stable and reliable performance
Easy to install and use
Specification
| Sensitivity | 1.5/2.0±0.002mv/v | Operating temperature | -20 ~ 70℃ |
| Rnage | 100kg,150kg,200kg | Input resistance | 380±30Ω |
| Total error | ±0.05%F.S | Output resistance | 350±5Ω |
| Ultimate overload | 300%F.S | Safe overload | 150%F.S |
| Creep | ±0.05%F.S | Zero balance | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10~12V |
| Zero temperature coefficient | ±0.05%F.S/10℃ | Ingress protection | IP68 |
| Max excitation voltage | 15V | Output temperature effect | ±0.05%F.S/10℃ |
| Material | Alloy Steel/Stainless Steel | Cable | length:2m;diameter:φ5.2mm |
Drawings
Applications
It is applicable to industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.
