| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | CLBSF2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $15~$75.00/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 750kg C3 S Type 100kg Load Cell 20kg 30kg 40kg 1t 1.2t 5t 10t | Output: | Analog SENSOR |
|---|---|---|---|
| Material: | Alloy Steel,stainless Steel | Range: | 20-500kg,700kg-1t,1.2t-5t,7.5t,10t |
| Insulation Resistance (M): | >5000MΩ920VDC) | Ouput Sensitivity: | 2.0±0.005mv/v |
| Operating Temperature: | -35~70℃ | Safe Overload: | 150%F.S |
| Creep: | ≤0.016%F.S | Temperature Zero Drift: | ±0.015%F.S/℃ |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
20kg 30kg 40kg 1t 1.2t 5t 10t c3 s type 100kg load cell
Description
The load cell adopts S-beam structure, and both tension and pressure can be used. Can be used for automated control equipment, weighing detection equipment.

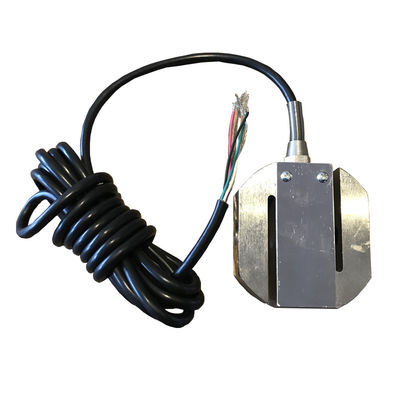

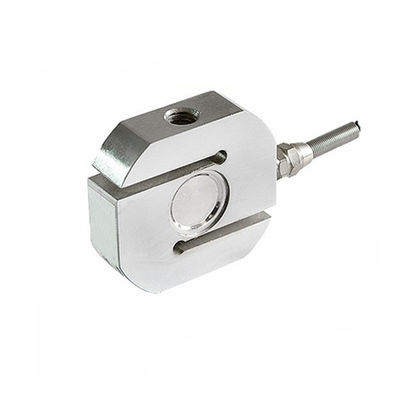

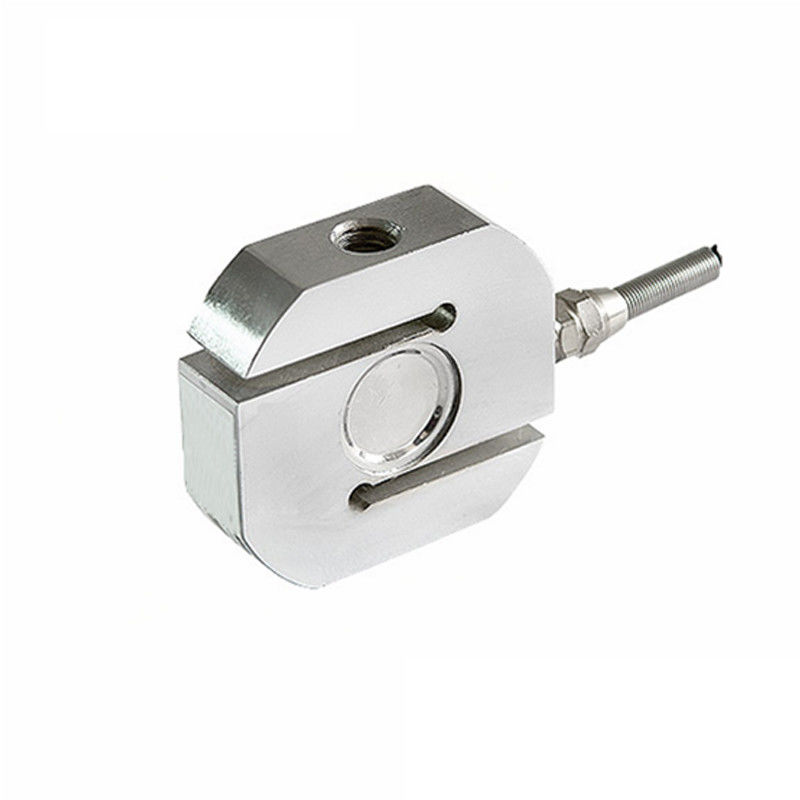

Detailed Images
Features
High measurement accuracy, good stability and good output symmetry.
Specification
| Rated Load | 20-150kg,200-500kg,500kg,700kg-1t,1.2-5t,7.5t,10t,200-300kg,700kg,800kg,1t,1.2t,1.5t | ||
| Output Sensitivity | 2.0±0.004mv/v | Safety overload | 150%F.S |
| Accuracy | C3 | Limit overload | 300%F.S |
| Creep | ≤0.016%F.S | Temperature compensation | 9~12V(DC) |
| Max verification scale value | 3000namx | Min verification scale value | Emax/10000Vmin |
| Temperature sensitivity drift | ≤0.011%FS/10℃ | Temperature zero drift | ≤0.015%FS/10℃ |
| Working temperature | -35~70℃ | Material | Alloy steel/stainless steel |
| Input resistance | 375±25Ω | Ingress protection | IP67 |
| Output Resistance | 350±5Ω | Insulation Resistance | ≥5000MΩ |
Drawings
CLBSF2
Applications
Widely used in belt scales, hopper scales, electromechanical combination scales, universal material testing machines, hook scales and various engineering devices.
