| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | CHBX3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1~$35.00/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Bellows Planar Beam 20 30 50 100 200kg Weighing Scale Load Cell | Output: | Analog SENSOR |
|---|---|---|---|
| Material: | Alloy Steel,stainless Steel | Range: | 50-500kg |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 2.0±0.005mv/v |
| Operating Temperature: | -20~80℃ | Safe Overload: | 150%F.S |
| Creep: | ±0.03%F.S | Zero Output: | ±1%F.S |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |

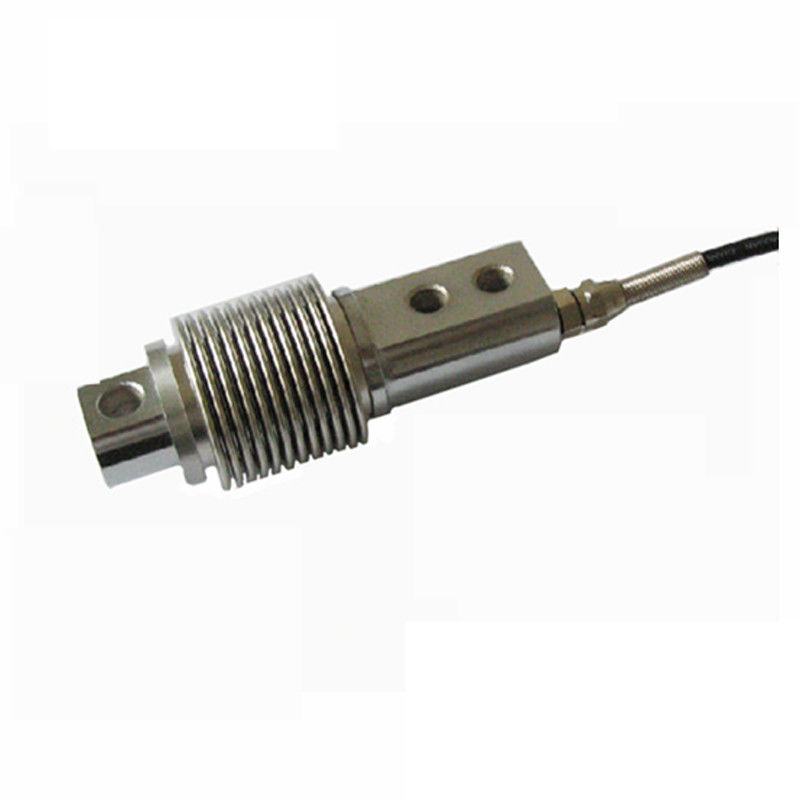

Bellows planar beam 20 30 50 100 200kg weighing scale load cell
Description
The bellows type cantilever weight scale load sensor adopts the structure of parallel beam, the metal bellows is welded and sealed and filled with inert gas.
Detailed Images
Features
Strong resistance to overload, fatigue and partial load.
Specification
| Rated Load | 20-30-50-100-200kg | Working temperature | -20 ~ +70℃ |
| Sensitivity | 2.0±0.005mv/v | Safety overload | 150%F.S |
| Total error | ±0.03%F.S | Limit overload | 300%F.S |
| Creep | ±0.03%F.S | Reference excitation voltage | 9~12V(DC) |
| Zero balance | ±1%F.S | Maximum excitation voltage | 15V |
| Zero point temperature effect | ±0.03%F.S/10℃ | Ingress protection | IP67 |
| Effect of output temperature | ±0.03%F.S/10℃ | Material | Alloy steel/stainless steel |
| Input resistance | 375±25Ω | Cable | 2-3m |
| Output Resistance | 350±5Ω | Insulation Resistance | ≥5000MΩ |
Drawings
CBS-3
Applications
It can be widely used in electronic belt scale, hopper scale, platform scale and other special weighing equipment, all kinds of material testing machine and other force measuring devices.
