| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | CLBT1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $10~$69/pc |
| Packaging Details: | High Accuracy Factory Directly Sales For Micro Load Cell Most popular load cell ton of bottom price Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Product Name: | S-type Column Tension 0.7t 1t 5t 10t Load Cell Sensor |
| Material: | Alloy Steel,stainless Steel | Range: | 0.2-0.7t,1-5t,10t |
| Insulation Resistance (M): | >5000MΩ | Sensitivity: | 2.0±0.05mv/v |
| Operating Temperature: | -20℃~80℃ | Safe Overload: | 150%FS |
| Creep: | ±0.05%FS/30min | Zero Temperature Influence: | ±0.05 %FS/10℃ |
S-type column tension 0.7t 1t 5t 10t load cell sensor
Description
The load cell adopts a column type S structure, which has the characteristics of high precision, good strength and good stability.

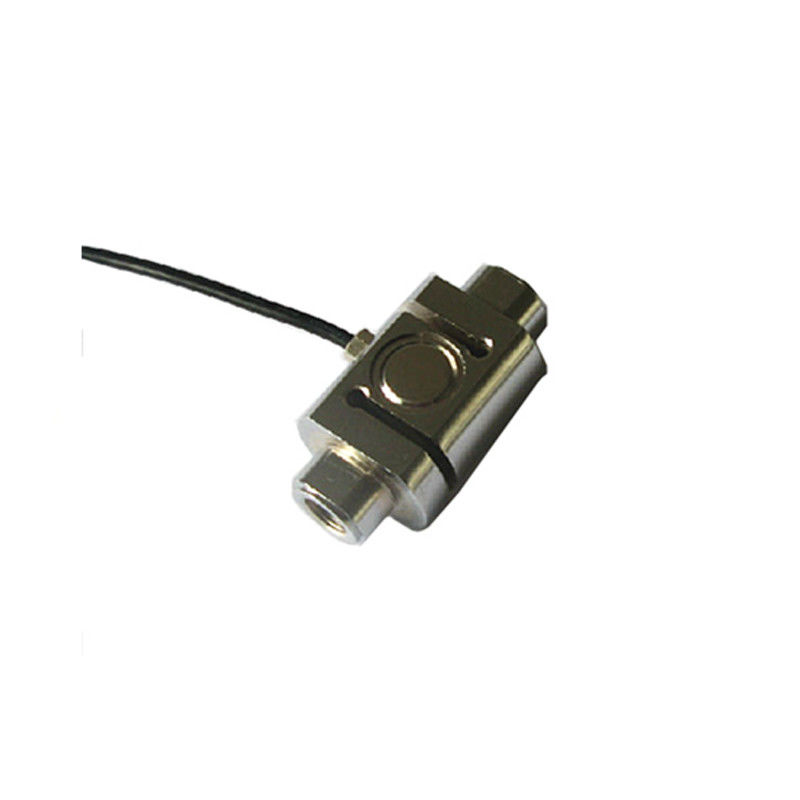

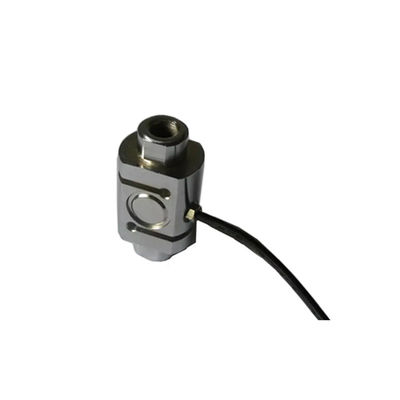

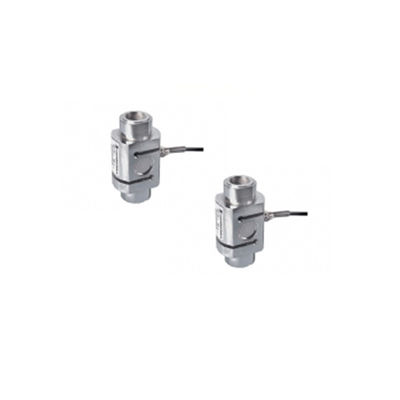

Detailed Images
Specification
| Rated Load | 0.2-0.7t,1-5t,10t | Repeatability | ±0.03%F.S |
| Sensitivity | 2.0±0.05mv/v | Safety overload | 150%F.S |
| Nonlinear | ±0.05%F.S | Hysteresis | ±0.05%F.S |
| Creep | ±0.05%F.S/30min | Working temperature | -20~80℃ |
| Zero output | ±1%F.S | Supply voltage | 10-15VDC |
| Zero temperature influence | ≤0.05%FS/10℃ | Sensitivity temperature influence | ≤0.05%FS/10℃ |
| Input resistance | 350±20Ω | Output Resistance | 350±5Ω |
| Material | Alloy steel/stainless steel | Insulation Resistance | ≥5000MΩ |
Drawings
CLBSZ
Applications
It is widely used in the measurement of tensile force of industrial automation process control such as crane scale and hopper scale.
