| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | EP |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1290.50 ~ USD2190.5/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | Accuracy 0.001mg Ultra Micro Analysis Electronic Balance For Lab | Mode No.: | EP |
|---|---|---|---|
| Measuring Range: | 31g-102g | Dividing Value (d): | 0.01mg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |

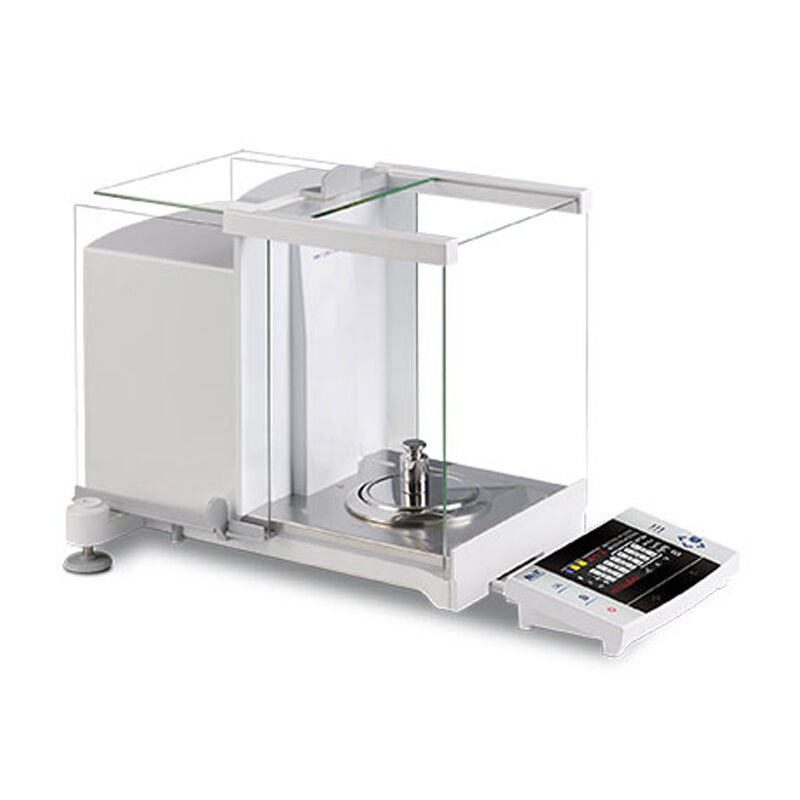

EP Series Semi-micro Balance Analysis Electronic Balance for Lab Instrument Dividing Value (d) 0.01mg Measuring Range 31g-102g
Product Description
Graduated value: 0.01mg, maximum range 31g-102g; a classic semi-micro analytical balance
The classic rear-mounted electromagnetic balance force sensor ensures excellent accuracy, superb stability and fast response time.
The perfect solution for microanalytical weighing tasks in the laboratory.
Large full-view LCD display for easy operation and clear, intuitive readings.
Unique membrane weighing technology and four levels of anti-vibration technology easily meet your various weighing environments.
Detailed Images
Specification
| EP Series Semi-microbalance | |||||||||
| Model No. | EP35A | EP55A | EP85A | EP105A | EP35B | EP55B | EP85B | EP105B | |
| Measuring Range | 31g | 51g | 81g | 102g | 31g | 51g | 81g | 102g | |
| Dividing Value (d) | 0.01mg | ||||||||
| Repeatability (5% load) | ±0.02mg | ||||||||
| Repeatability (near 100% load) | ±0.03 | ||||||||
|
Linear Error (typical error) |
0.3μg | ||||||||
| Calibration method | Fully automatic internal calibration | External weight calibration | |||||||
|
Sensitivity Drift (+10℃~+30℃) |
5ppm/k | ||||||||
| Operating Temperature | 10℃~30℃ | ||||||||
| Operating Humidity | 20%RH~80%RH | ||||||||
| Typical Stabilisation Time | ≤4S | ≤4S | ≤5S | ≤6S | ≤4S | ≤4S | ≤5S | ≤6S | |
| Weighing Pan Size | Φ90mm | ||||||||
| External Dimension | 470mm×310mm×320mm | ||||||||
| Height of Weighing Chamber | 230mm | ||||||||
| Warming and Fluctuating | ≤1℃/Hour | ||||||||
| DC Adapter | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A | ||||||||
| Baud Rates | 300,600,1200,2400,4800,9600 | ||||||||
| Accuracy Class | Class I | ||||||||
Features
A classic semi-micro analytical balance
The classic rear-mounted electromagnetic balance force transducer ensures excellent accuracy, superb stability and fast response time.
♦ Unique transducer technology ensures accuracy, stability and fast response to weighing results.
♦ Unique membrane weighing technology, which allows you to obtain the same weighing speed even when weighing small quantities.
♦ isoCAL automatic calibration technology, with fully automatic temperature and time triggered calibration and adjustment, ensures that you get the reliability you need for easy weighing results at all times and at all temperatures.
♦ Unique temperature compensation scheme that solves the problem of reliability of balance weighing results due to temperature effects.
The perfect solution for laboratory microanalysis weighing tasks.
♦ Extra large full-view LCD display, easy to operate, clear and intuitive readings Intuitive and clear LCD display, simple user interface and clear structure.
♦ Unique membrane weighing technology
Adopting unique filter membrane weighing technology, even if loaded with the smallest sense load, you can get accurate results quickly.
♦ Four levels of anti-vibration technology easily meets your various weighing environments.
You can set different environmental parameters according to different weighing environments to achieve accurate and fast weighing in the corresponding environment.
♦ Standard communication interface
Automatic recognition of manufacturer printers.
Standard RS232, easy to connect with peripherals.
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
