| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | XE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD26749.5 ~ USD8839.50/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | XE Series Micro-balance Analytical Balance Measuring Range 2.1g-31g | Mode No.: | XE |
|---|---|---|---|
| Measuring Range: | 120g-520g | Dividing Value (d): | 1μg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |

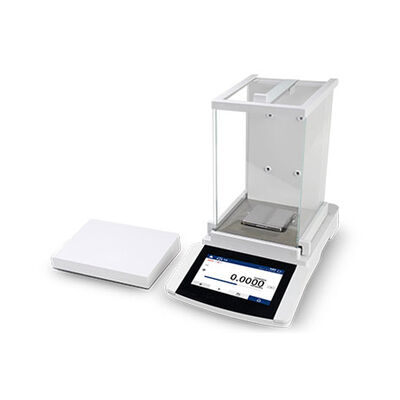

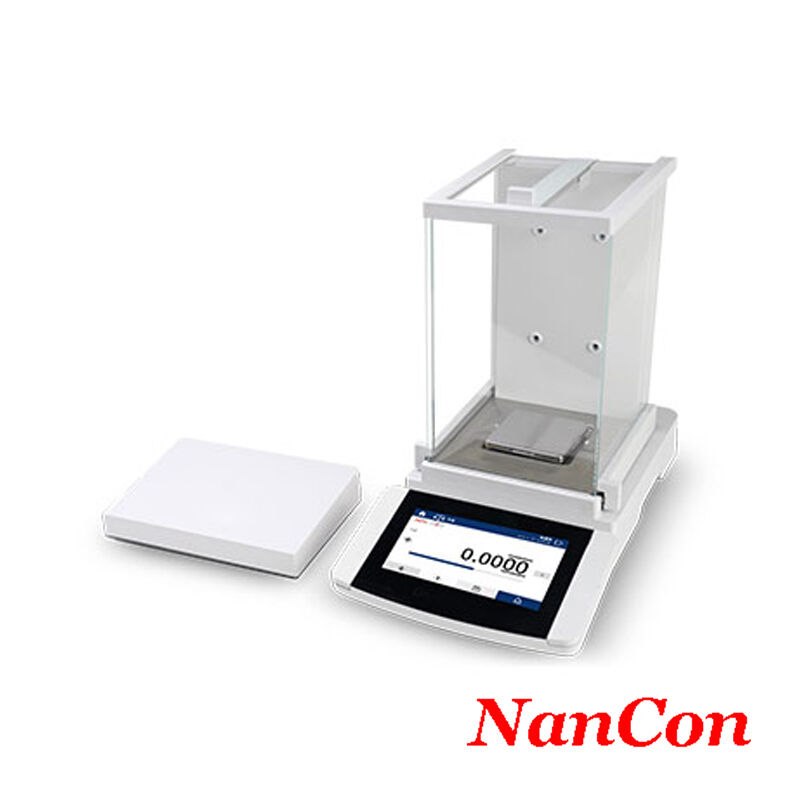

XE Series Analytical Balance Laboratory Balance 2.1g Range 0.1μg Dividing Value Analysis Instrument
Product Description
Readability: 0.1mg,Max Capacity: 120g-520gAdopt new super monolithic sensor technology - accurate, fast, stable and reliable.
Compliance with 21CFR Part 11 - full traceabilityOperating system with full touch screenAdopt automatic calibration and adjustment technology
Built-in multi-applications, print output & data output meet GLP
Detailed Images
Specification
| XE Series Analytical Balance | ||||
| Model No. | XE124 | XE224 | XE324 | XE524 |
| Max Capacity | 120g | 220g | 320g | 520g |
| Readability (d) | 0.1g | 0.1mg | 0.1mg | 0.1mg |
| Repeatability(5% Load) | ||||
| Tolerance | 0.1mg | 0.1mg | 0.1mg | 0.1mg |
| Typical Value | 0.2mg | 0.2mg | 0.2mg | 0.3mg |
| Repeatability(Approximately 100% Load) | ||||
| Tolerance | 0.2mg | 0.2mg | 0.25mg | 0.3mg |
| Typical Value | 0.3mg | 0.3mg | 0.4mg | 0.5mg |
| Linearity Deviation | ||||
| Tolerance | 0.2mg | 0.2mg | 0.25mg | 0.3mg |
| Typical Value | 0.3mg | 0.3mg | 0.4mg | 0.5mg |
| Off-center Load Deviation (Positions According to OIML R76) | ||||
| Test Weight | 100g | 100g | 200g | 200g |
| Tolerance | 0.2mg | 0.2mg | 0.25mg | 0.3mg |
| Typical Valve | 0.3mg | 0.3mg | 0.4mg | 0.5mg |
| Sensitivity Drift ( 10℃ ~ 30℃) | 8 ppm/K | |||
| Tare Max Capacity: <100% Max Capacity | ||||
| Accuracy Class | I (According to Directive 2014 | 31 | EU) | |||
| Verification Scale Interval(e) | 1mg | 1mg | 1mg | 1mg |
| Minimum Load | 10mg | 10mg | 10mg | 10mg |
| Minimum Initial Weighting:According to USP(United States Pharmacopeia) Chap. 41 | ||||
| Optimum Minimum Initial Weighting | 8.2mg | 8.2mg | 8.2mg | 8.2mg |
| Typical Minimum Initial Weighting | 10mg | 10mg | 10mg | 10mg |
| Typical Stabilization Time | 3s | 3s | 3s | 5s |
| Typical Measurement Time | 5s | 5s | 5s | 8s |
Features
Adopt new super monolithic sensor technology - accurate, fast, stable and reliable.
♦ Sensitivity: unparalleled sensor design and processing technology ensure the sensitivity of micro-weighting results
♦ Precision: Particular super monolithic sensor technology ensures the accuracy, stability and consistency of weighing results.
♦ High-Speed: The sensor technology of horizontal bar, combined with excellent circuit design and software algorithm, meets the requirements of rapid weighing in the laboratory
Compliance with 21CFR Part 11 - full traceability
♦ Designed in accordance with FDA data integrity principles to achieve attributable, legible, contemporaneous, original, and accurate data (ALCOA).
♦ User administration: Three-level user administration through access control
♦ Electronic Signature: The use''''s electronic signature can be used to sign the final report of the weighing operation.
♦ Audit Trail and Weighing Log: An audit trail is a tamper-proof electronic log file with a timestamp that allows the reconstruction of events related to the creation, modification, and/or deletion of records.
♦ Data transmission security; Electronic records should be protected from any tampering.
♦ Data output meets GLP/GMP requirements
Operating system with full touch screen
♦ Operation requirement is concise and clear, so customers can conveniently operate the balance and directly read the results on the screen to have a wonderful experience. At the same time, it is necessary to consider the special requirements of users in special industries, such as non-contact operation, etc.
Adopt automatic calibration and adjustment technology
♦ isoCAL automatic internal calibration and adjustment function, automatically triggered by temperature and time, fully ensure the accuracy of weighing results.
Adopt automatic door technology (optional)
♦ The technology of automatically opening and closing door is not only to improve customer experience satisfaction, but also necessary to consider the requirements of non-contact weighing in special industries, so as to achieve the goal of not contacting the balance during the weighing operation. Besides, The balance has a function of memorizing door position.
Fully automatic electrostatic removal technology (optional)
♦ Built-in ionizer can automatically eliminate the effect of static electricity on weighing
Built-in multi-applications
♦ Built-in multi-applications, print output, & data output meet GLP/GMP requirements
Standard communication interface
♦ Automatically identify the printer of D&T
♦ Standard RS232, easy to connect with peripherals
♦ PC connection function not only is easy to connect to PC, but also can directly transfer weighing data to spreadsheets (Excel)
Standard USB-C interface for data storage and export functions
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
