| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | ML |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2676.5 ~ USD1895.50/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | ML Series Semi-micro Analytical Electronic Balance For Laboratory | Mode No.: | ML |
|---|---|---|---|
| Measuring Range: | 31g-120g | Dividing Value (d): | 0.01mg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |

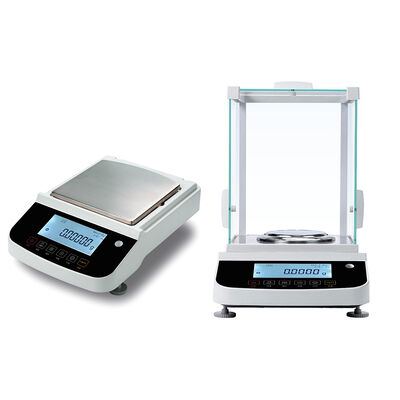

ML Series Semi-micro Analytical Electronic Balance for Lab Testing and Scale Dividing Value 0.01mg Measuring Range 31g-120g
Product Description
Graduated value: 0.01mg, maximum range 31g-120g; ML series semi-micro electronic balance adopts the new monoblock electromagnetic force sensor, the design accuracy of 0.01mg. The monoblock sensor is made of the whole piece of high purity aluminium alloy in the high-precision machining centre on the integration of the cutting completed, reducing the traditional sensor on the hundreds of parts and components, the structure of the integration of a high degree of durability; the consistency of the material to make the sensor more independent of temperature changes, stability is stronger. The consistency of the material makes the sensor more unaffected by temperature changes, and the stability is stronger. Ultra-fine processing, so that the sensor has a higher resolution and response speed, can effectively meet the laboratory on the demand for precision weighing.
Detailed Images
Specification
| ML Series Semi-micro Analytical Electronic Balance | ||||||||
| Model No. | ML35 | ML35A | ML55 | ML55A | ML85 | ML85A | ML1205 | ML1205A |
| Measuring Range | 31g | 51g | 81g | 120g | ||||
| Dividing Value(d) | 0.01mg | |||||||
| Repeatability (≤) | ±0.01mg | ±0.02mg | ±0.03mg | |||||
| Linearity Error (≤) | ±0.03mg | ±0.05mg | ±0.03mg | |||||
| Sensitivity Drift | 8 ppm/K (+10℃~+30℃) | |||||||
| Operating Tempeature | 18℃ ~ 23℃ | |||||||
| Operating Humidity | 15%RH ~ 80%RH | |||||||
| Typical stabilisation time | 2.5S | 3S | 5S | |||||
| Sample plate size | Φ90mm | |||||||
| External Dimension | 208mm×320mm×108mm | |||||||
| Power-on warm-up time | 30 ~ 60minutes | |||||||
| Power Supply | Input: 220V AC/50HZ; Output: 12V DC/2A | |||||||
| Accuracy | Class I | |||||||
Features
Super Single Electromagnetic Force Sensor
Adopting Super Single Electromagnetic Force Transducer, which is made of a whole piece of high purity aluminium alloy cut in a high precision machining centre to reduce parts by 70%, increase response speed by 30% and reduce failure rate, which makes the weighing result more accurate and reliable.
Cost-effective and outstanding design to fulfil all weighing tasks.
Optimised functional design
The whole machine adopts streamline design, quick icon button navigation, beautiful appearance, convenient operation. Anti-leakage, anti-static and anti-corrosion features Suitable for a wide range of applications.
Stainless steel weighing pan to stabilise weighing items and ensure weighing accuracy.

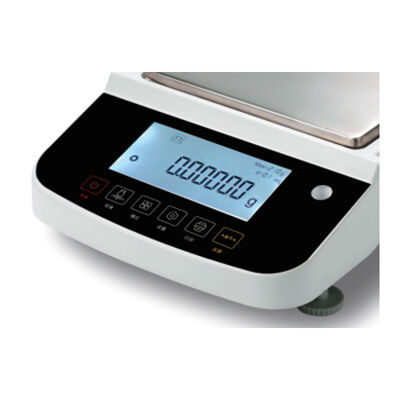

LCD Liquid Crystal Display
The LCD display is clear and bright, with a reasonable layout, making it easy for users to read the weighing results.

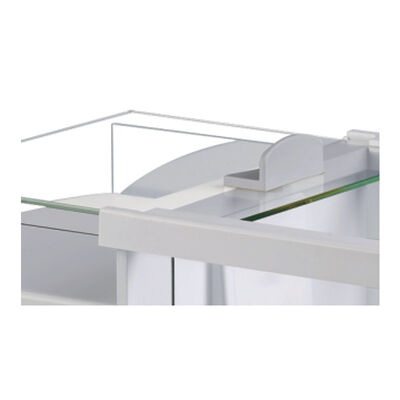

Transparent glass windscreen
The transparent glass windscreen makes the samples visible from all directions during weighing and can be disassembled and cleaned for quick cleaning.
Multiple weighing modes
Basic weighing, percentage weighing, counting weighing.
Multiple weighing unit conversion
Grams (g), carats (Ct), ounces (oz), pounds (lb) and other units can be freely switched.

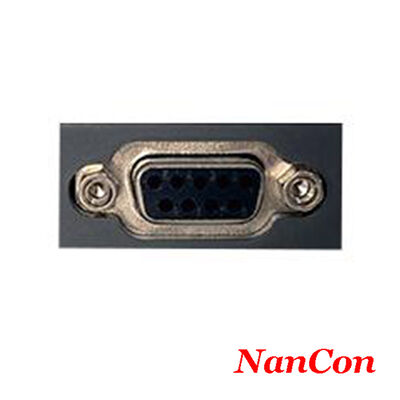

♦ Built-in RS232 two-way communication interface
It can realise the connection between balance and PC and micro printer. Transfer the weighing results to other open applications such as PC.
♦ Fully automatic calibration system to ensure accurate weighing.
When the temperature changes 1.5℃ or the time from the last calibration is more than 2 hours, the balance will start the calibration function by itself, avoiding the potential factors of untimed calibration or inaccuracy of external weights, making the weighing results more accurate and reliable, and reducing the unnecessary operations (only for internal calibration type balance).
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
