| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | ES-E120A/ES-E210A/ES-E220A/ES-E320A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2169.5 ~ USD1729.5/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | Dual Range Electronic Balance ES-E Series Analytical Balances And Semi | Mode No.: | ES-E120A/ES-E210A/ES-E220A/ES-E320A |
|---|---|---|---|
| Measuring Range: | 210g/0.1mg 31g/0.01mg | Dividing Value (d): | 0.1/0.01mg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |
Analytical Weighing Balance Lab Analytical Balance Dual Range Electronic Balance ES-E Series Analytical Balances and Semi Class
Product Description
Graduated value: 1mg, maximum range 31g-120g;
BA series new upgraded laboratory balances, the whole series configured with higher resolution and response speed of the new generation of super single sensor, using today's mainstream LED LCD and touch screen combined display technology, with higher contrast and wider viewing angle. Adhering to the practical and simple design style of NanCon, the products focus on meeting the routine laboratory weighing applications, and will gradually replace the ES series of laboratory balances.

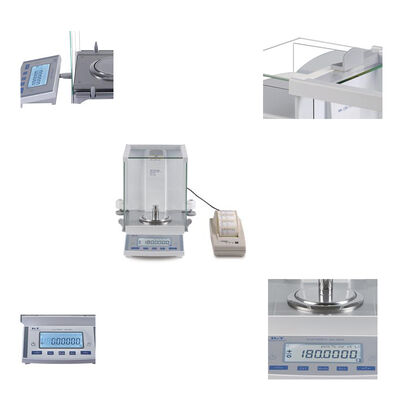

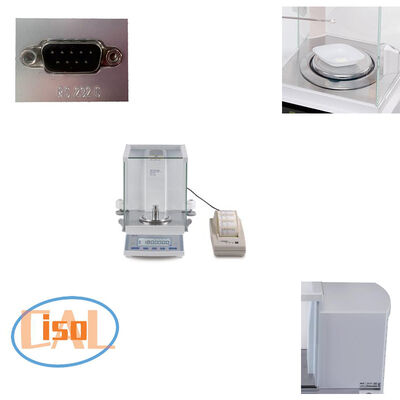

Detailed Images
Specification
| ES-E Series Analytical Balances and Semi-Microbalances: Classic Rear-mounted Electromagnetic Electronic Balances | ||||
| Model No. | ES-E120A | ES-E210A | ES-E220A | ES-E320A |
| Measuring Range | 120g/0.01mg | 220g/0.1mg | 320g/0.1mg | 320g/0.1mg |
| Dividing Value(d) | 0.01mg | 0.1mg | ||
| Repeatability (typical error)(5% load) | ±0.1mg | |||
| Repeatability (typical error)(near 100% load) | ±0.2mg | |||
| Linearity Error(typical error) | ±0.2mg | |||
| Sensitivity Drift ppm/K (+10℃~+30℃) | 2.5 | 2.5 | 2.5 | 2.5 |
| Typical stabilization time | 2 | 3 | 3 | 3 |
| Operating Temperature | 15℃ ~ 30℃ | |||
| Operating Humidity | 20%RH ~ 80%RH | |||
| Sample plate size | Diameter 90mm | |||
| External Dimension | 470mm×310mm×320mm | |||
| Power-on warm-up time | 30 ~ 60minutes | |||
| Warming & Fluctuating | ≤1℃/Hour | |||
| Power Supply | Input: 220V/110V AC/50HZ; Output: 12V DC/2A | |||
| Baud-rate | 300,600,1200 | |||
| Accuracy | Class I | |||
| Calibration | Internal | |||
Features
The best choice for routine laboratory weighing tasks
High-quality super monobloc load cells ensure excellent accuracy, stability and fast response time.
The new Super Monobloc technology ensures accuracy, stability and fast response to weighing results.
Outstanding cost-effective design, enabling you to carry out your laboratory weighing tasks with minimum cost.
♦ Easy to operate, clear and intuitive readings thanks to the LED touch screen.
The combination of intuitive and durable LEDs and touch screen technology results in a simple and clearly structured user interface.
♦ Fully automatic internal calibration and adjustment with isoCAL to ensure the accuracy of the weighing results.
Fully automatic temperature and time-triggered calibration and adjustment functions are adopted to ensure that you can obtain accurate weighing results at any time and at any temperature.
Unique membrane weighing technology
Unique membrane weighing technology allows you to get fast and accurate results even with the smallest sensible loads.
♦ Four levels of anti-vibration technology to meet your weighing environment.
Just click on the screen to select your weighing environment and achieve accurate and fast weighing under the corresponding environment.
♦ De-static technology
The windscreen glass is specially coated to avoid the effect of static electricity on the weighing results.
♦ Password Protection
Prevent accidental change of balance settings.
♦ Communication interface:
Standard RS232 communication interface, automatic recognition of DynaScope's printer.
True PC connectivity, data transfer directly to electronic spreadsheet (Excel).
Standard USB-C interface for data storage and export function.
♦ Built-in multiple applications, printout, data output in accordance with GLP/GMP requirements
--Weighing/Filling --Counting --Weighing percentage --Mixing/Net weighing (preset tare) --Dynamic weighing
-Component/Total weight -Checkweighing -Conversion of mass units -Calculation/Free Factor -Statistics -Peak hold -Density determination
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry Laboratory
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
