| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | BA55 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1935.5 ~ USD1429.5/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | BA Series Precision Measuring Leader Analytical Laboratory Balance | Mode No.: | BA55 |
|---|---|---|---|
| Measuring Range: | 51g | Dividing Value (d): | 0.01mg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |

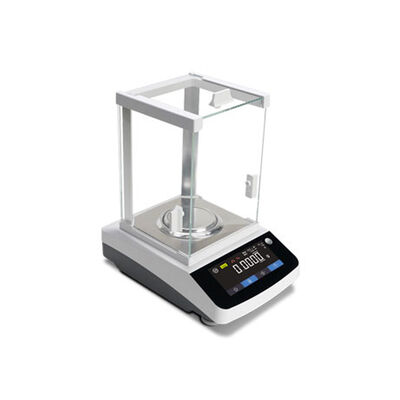

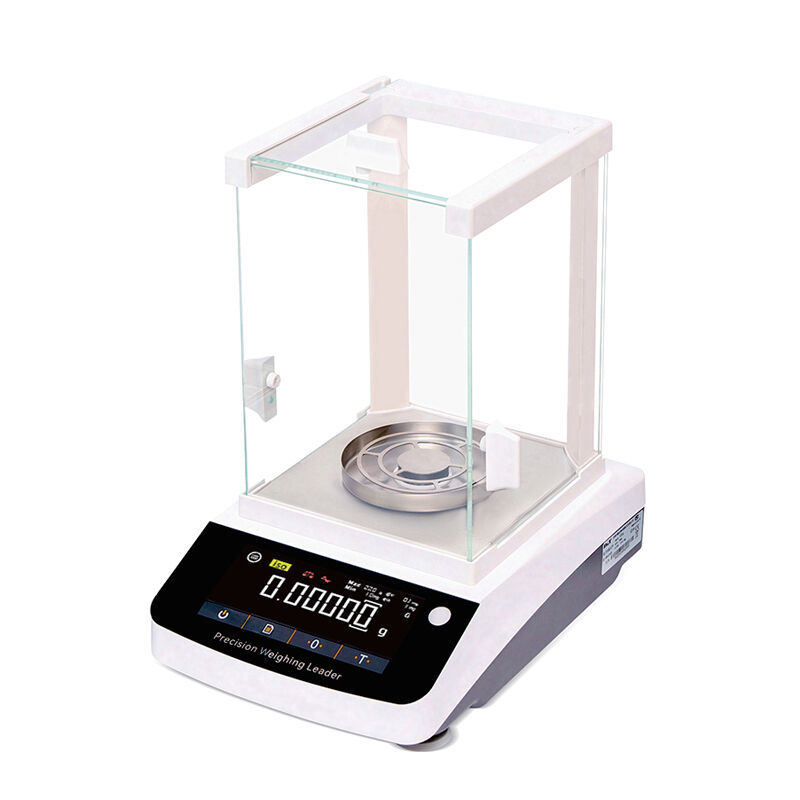

NanCon BA55 Series New Precision Measuring Leader Analytical Laboratory Balance 51g 0.01mg Dividing Value 0.001g Accuracy
Product Description
The BA Series laboratory balances employ next-generation super-monolithic sensor technology, upholding NanCon consistent philosophy of practical, uncluttered design focused on fulfilling routine laboratory weighing applications. They will progressively replace the ES Series laboratory balances.
Detailed Images
Specification
| Precision Measuring Leader New Upgraded Analytical Laboratory Balance | |
| Model No. | BA55 |
| Measuring Range | 51g |
| Dividing Value(d) | 0.01mg |
| Repeatability (typical error)(5% load) | ±0.01mg |
| Repeatability (typical error)(near 100% load) | 0.02mg |
| Linearity Error(typical error) | ±0.03mg |
| Sensitivity Drift | 5 ppm/K (+10℃~+30℃) |
| Typical stabilization time | ≤2.5S |
| Operating Temperature | 18℃ ~ 23℃ |
| Operating Humidity | 15%RH ~ 80%RH |
| Sample plate size | Φ90mm |
| External Dimension | 208mm×320mm×108mm |
| Power-on warm-up time | 30 ~ 60minutes |
| Warming & Fluctuating | ≤1℃/Hour |
| Power Supply | Input: 220/110V AC/50HZ; Output: 12V DC/2A |
| Baud-rate | 300,600,1200,2400,4800,9600 |
| Accuracy | Class I |
Features
Single-element sensor: The uniquely patented Super Single-element Sensor, serving as the core component of the weighing mechanism, directly determines weighing speed, accuracy, and stability. Its implementation in the BA series analytical balances fulfils laboratory requirements for precision, accuracy, and measurement range.
Display: Employing a combination of LED display and touchscreen technology, it presents a simple, clear user interface. This facilitates convenient operation and provides an intuitive display experience.
Applications: Incorporates 12 pre-installed applications. Print and data output comply with GLP/GMP requirements.
Communication Interfaces: Automatically recognises NanCon printers and secondary displays. Standard RS232/RS485 interfaces facilitate effortless connection to peripherals. Seamless PC connectivity enables direct transfer of weighing data to spreadsheets (Excel). Standard USB-C interface supports data storage and export functions.
Level Adjustment: Automated motorised levelling ensures swift and effortless calibration.
External Calibration: User-friendly external weight calibration with predefined weight selections for corresponding calibration weights.
Applications
This product is suitable for use in scientific research, education, metallurgy, agriculture and other industries. Offering excellent stability, high safety standards and minimal bench space requirements, it is currently a cost-effective electronic balance widely employed in laboratories.
