| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | ES-E |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2190.5 ~ USD1265.50/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | Semi-microbalance High Precision Electronic Balance Laboratory | Mode No.: | ES-E |
|---|---|---|---|
| Measuring Range: | 31g-120g/120g-210 | Dividing Value (d): | 0.01mg/0.1mg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |
ES-E Series Semi-microbalance Analysis High Precision Electronic Balance for Laboratory Instrument Dividing Value 0.01mg/0.1mg Measuring Range 31g-120g/120g-210g
Product Description
Graduated value: 0.01mg/0.1mg, maximum range 31g-120g/120g-210; ES-E series semi-microbalance adopts high sensitivity and high stability electromagnetic balance force sensor, the highest design accuracy of 0.01mg, the whole machine texture is outstanding, rigorous craftsmanship, exquisite and good visual effect combined with a large volume of operating space is the product's special features. Stability and accuracy compatible performance to meet the needs of the laboratory for precision weighing.

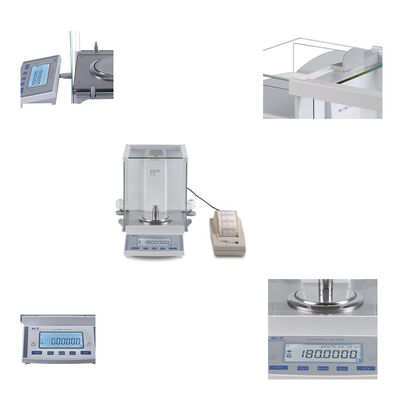

Detailed Images
Specification
| ES-E Series Semi-microbalance | |||||||||
| Model No. | ES1035A | ES1055A | ES1085A | ES2035A | ES2055A | ES2085A | ES1205A | ||
| Measuring Range | 31/120g | 51/120g | 82/120g | 31/210g | 51/210g | 82/210g | 120g | ||
| Dividing Value (d) | 0.01mg/0.1mg | 0.01mg | |||||||
| Repeatability Error(≤) | ±0.02mg/±0.1mg | ±0.02mg | |||||||
| Linearity Error (≤) | ±0.02mg/±0.1mg | ±0.02mg | |||||||
| Calibration Method |
Fully Automatic Internal Calibration External Weight Calibration |
||||||||
| Operating Temperature | 10℃~30℃ | ||||||||
| Operatating Humidity | 20%RH ~ 80%RH | ||||||||
| Typical Stabilisation Time | ≤2.5S | ||||||||
| Sample Plate Size | Φ90mm | ||||||||
| External Dimension | 470mm×310mm×320mm | ||||||||
| Display Screen Size | 185mm×100mm | ||||||||
| Height of weighing chamber | 230mm | ||||||||
| Power-on warm-up time | 30 ~ 60 Minutes | ||||||||
| DC Adapter | Input: 220V AC/50HZ; Output: 12V DC/2A | ||||||||
| Baud-rate | 300,600,1200,2400,4800,9600 | ||||||||
| Accuracy Class | Class I | ||||||||
Features
Classic rear-mounted electromagnetic balance force sensor
Unique rear-mounted electromagnetic force transducer with high accuracy and resolution; ensuring accuracy, stability and fast response of weighing results.
Cost-effective and outstanding design, excellent in all weighing tasks.
♦ Unique split design
The display unit is separated from the weighing unit, avoiding the vibration effect on the balance when operating the keys, and monitoring the measurement process from multiple angles.
♦ Optimised micro-sample weighing function
Adopting the latest digital processing technology, while maintaining the stability of the balance reading, it greatly improves the response speed of micro-sampling; it makes the customer's spiking volume and the balance reading consistent, applicable to powder and liquid micro-sampling, with excellent accuracy.
♦ Stretchable LCD Display
Adopting stretchable LCD display, the screen is clear and bright with reasonable layout, which is convenient for users to read the weighing results.
♦ Transparent Glass Windscreen
It makes the samples visible in many directions during the weighing process, and can also be disassembled and cleaned for quick cleaning.
Multiple weighing modes
Basic weighing, percentage weighing, counting weighing.
Conversion of weighing units
♦ Switch between grams (g), carats (Ct), ounces (oz) and pounds (lb).

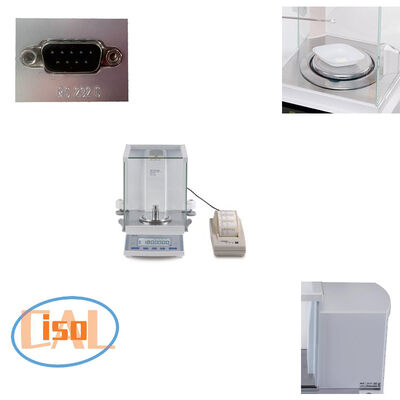

♦ Built-in RS232 two-way communication interface
It can realise the connection between balance and computer and micro printer. It can also transfer the weighing results to other open applications such as PC.
♦ Fully automatic calibration system to ensure accurate weighing.
When the temperature changes 1.5℃ or the time from the last calibration is more than 2 hours, the balance will start the calibration function by itself, avoiding the potential factors of inaccurate external weights or untimed calibration, which makes the weighing results more accurate and reliable and reduces the unnecessary operation (only for internal calibration type balance).
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
